/iblai-vibe-agent-lti

Mirrored from iblai/vibe · skills/agents/iblai-vibe-agent-lti/SKILL.md. This page is generated — edit it in the repository, not here.

Add the agent LTI tab -- let the agent be added to a Learning Management System (Canvas, Brightspace, Blackboard or Moodle) so students can open it right inside their course. A master "LTI launches" toggle gates four sub-tabs: Links (the LTI link that launches this agent), Keys (platform-wide RSA signing keys), Tools (integrations with external LTI platforms), and Tool Endpoints (the fixed URLs to share with the LMS). This is one tab in the wider agent-settings family. All tabs share the same AgentSettingsProvider wrapper.

Common setup (brand, conventions, env files, verification): see docs/skill-setup.md.

Prerequisites

• Auth must be set up first (/iblai-vibe-auth)
• MCP server + skills configured (@iblai/mcp in .mcp.json)
• AgentSettingsProvider must wrap the route (see /iblai-vibe-agent-setting Step 2 if not already set up)
• Ask the user for a real mentorId (agent UUID). Do NOT invent one.
• Ask the user for their LMS domain (e.g. https://learn.example.org) for the lmsDomain prop — it is deployment-specific and the Tool Endpoints sub-tab builds its fixed URLs from it. Do NOT invent one.

Step 1: Check Environment

Before proceeding, check for an iblai.env in the project root. Look for PLATFORM, DOMAIN, and TOKEN variables. If the file does not exist or is missing these variables, tell the user: "You need an iblai.env with your platform configuration. Download the template and fill in your values: curl -o iblai.env https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/iblai.env"

Step 2: Mount AgentLtiTab

// app/(app)/agents/[mentorId]/lti/page.tsx
"use client";

import { AgentLtiTab } from "@iblai/iblai-js/web-containers/next";

export default function AgentLtiPage() {
  return (
    <div className="flex h-full flex-col bg-white">
      <AgentLtiTab lmsDomain="https://learn.example.org" />
    </div>
  );
}

AgentLtiTab reads tenantKey, mentorId, username, and enableRBAC from AgentSettingsProvider. Only lmsDomain needs to be supplied by the host since it is deployment-specific.

Step 3: Customize Labels (Optional)

import { AgentLtiTab } from "@iblai/iblai-js/web-containers/next";

<AgentLtiTab
  lmsDomain="https://learn.example.org"
  labels={{
    header: { title: "LMS Integration" },
    subTabs: { agentLinks: "Launch Links" },
  }}
/>;

Step 4: Use MCP Tools for Customization

get_component_info("AgentLtiTab")
get_component_info("AgentSettingsProvider")

<AgentLtiTab> Props

Import from @iblai/iblai-js/web-containers/next.

What the tab renders

• Header — "LTI" title and description.
• "LTI launches" capability toggle — the agent's is_lti_accessible setting. Off hides the sub-tabs and shows a hint; on reveals the four sub-tabs below. The switch updates optimistically and rolls back with an error toast on failure.

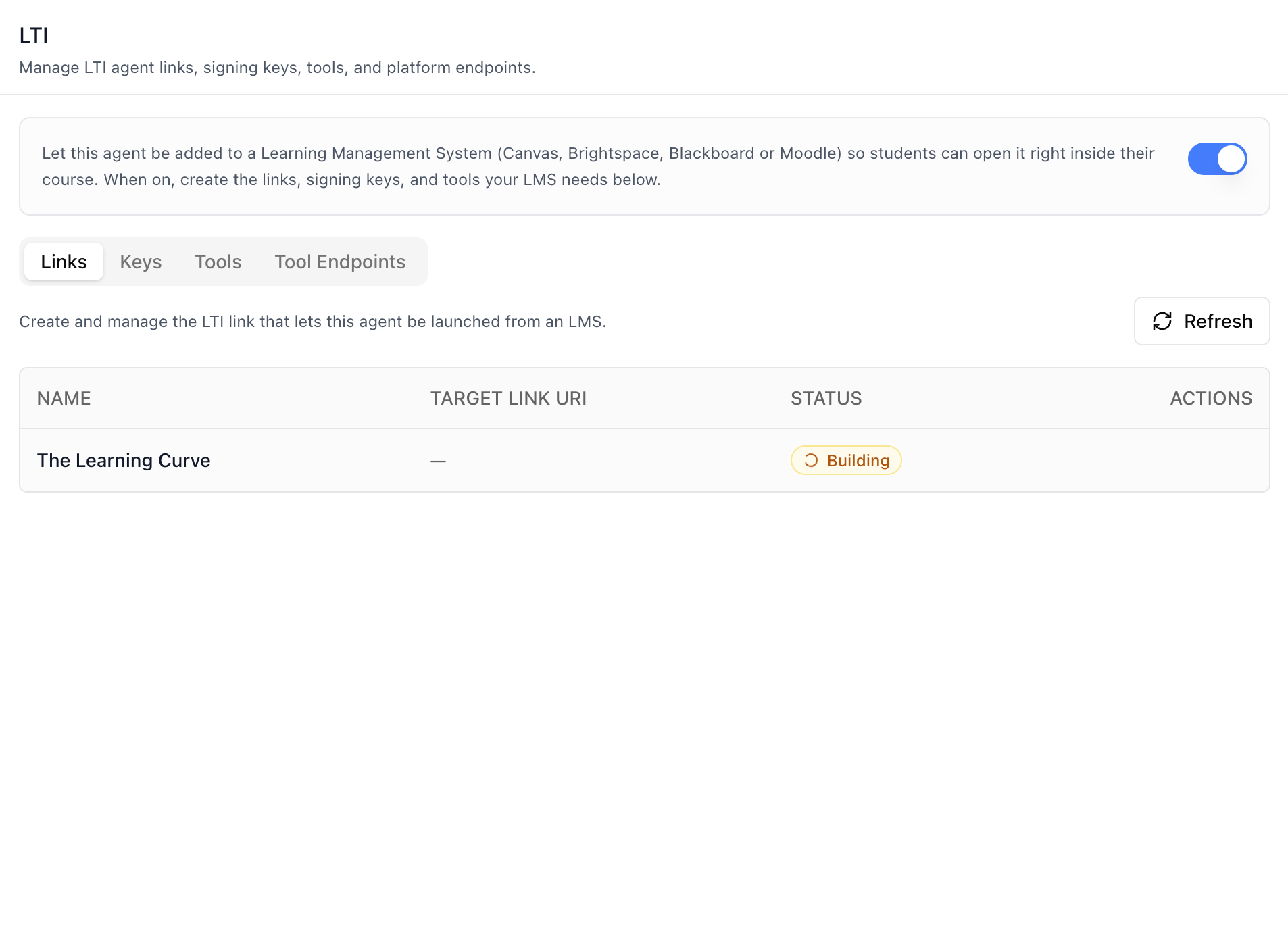

Links sub-tab

The LTI link that lets this agent be launched from an LMS. Table shows Name, Target Link URI (with copy button), Status, and a per-row action. Create/Edit modal collects a single required Name, displayed when selecting this agent during deep linking content selection. The link is created with the agent's stable id (mentor_config.mentor) and the organization's platform_key. Creating a link while the LTI toggle is off enables is_lti_accessible automatically.

Creation is asynchronous. The synchronous build provisions an edX course and regularly outlives the 20s proxy timeout, so the data layer sends async_create: true on the POST — the backend answers 202 immediately with { id, status: "pending" } and builds the link in the background:

• Status badge — Pending / Building (amber, with a spinner), Ready (green), Failed (red, with a hint tooltip). The Target Link URI shows — until the build completes.
• Refresh button — shown while any link is still pending/building; re-fetches the list to pick up the latest status.
• Retry — a failed row swaps its edit action for a Retry button, which deletes the failed entity and re-posts the original payload as a fresh async create.
• Edit is gated — a link is only editable once it is Ready; in-progress and failed rows can't be renamed.

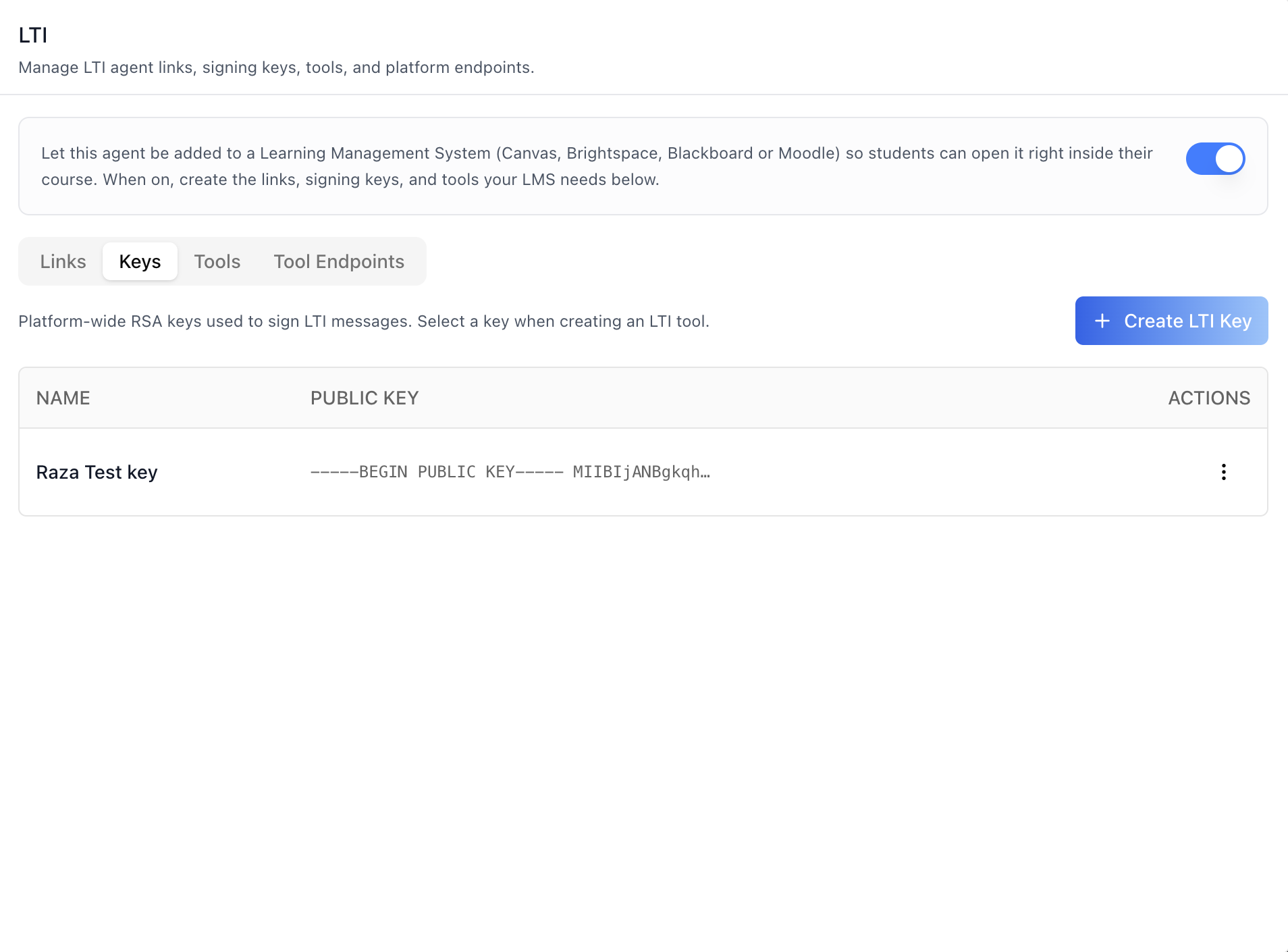

Keys sub-tab

Platform-wide RSA keys used to sign LTI messages. Table shows Name and a truncated Public Key, with a per-row actions menu (Edit / Delete):

• Create LTI Key — name only; the RSA key pair is generated automatically server-side.

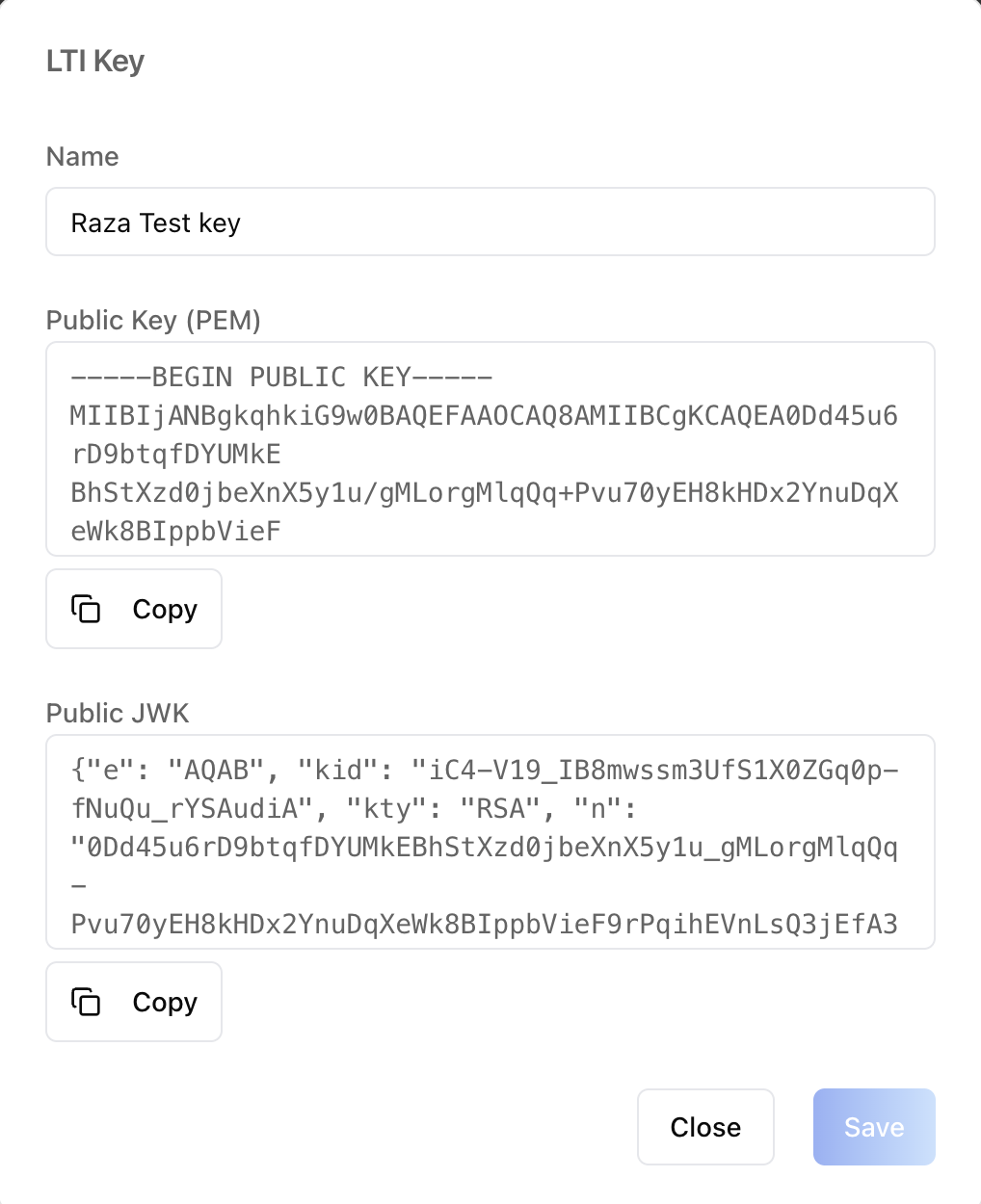

• Key detail modal — rename the key and view/copy the Public Key (PEM) and Public JWK.
• Delete — confirmation modal. A key can only be deleted while it is not associated with any LTI tool; the backend error detail is surfaced when deletion is blocked.

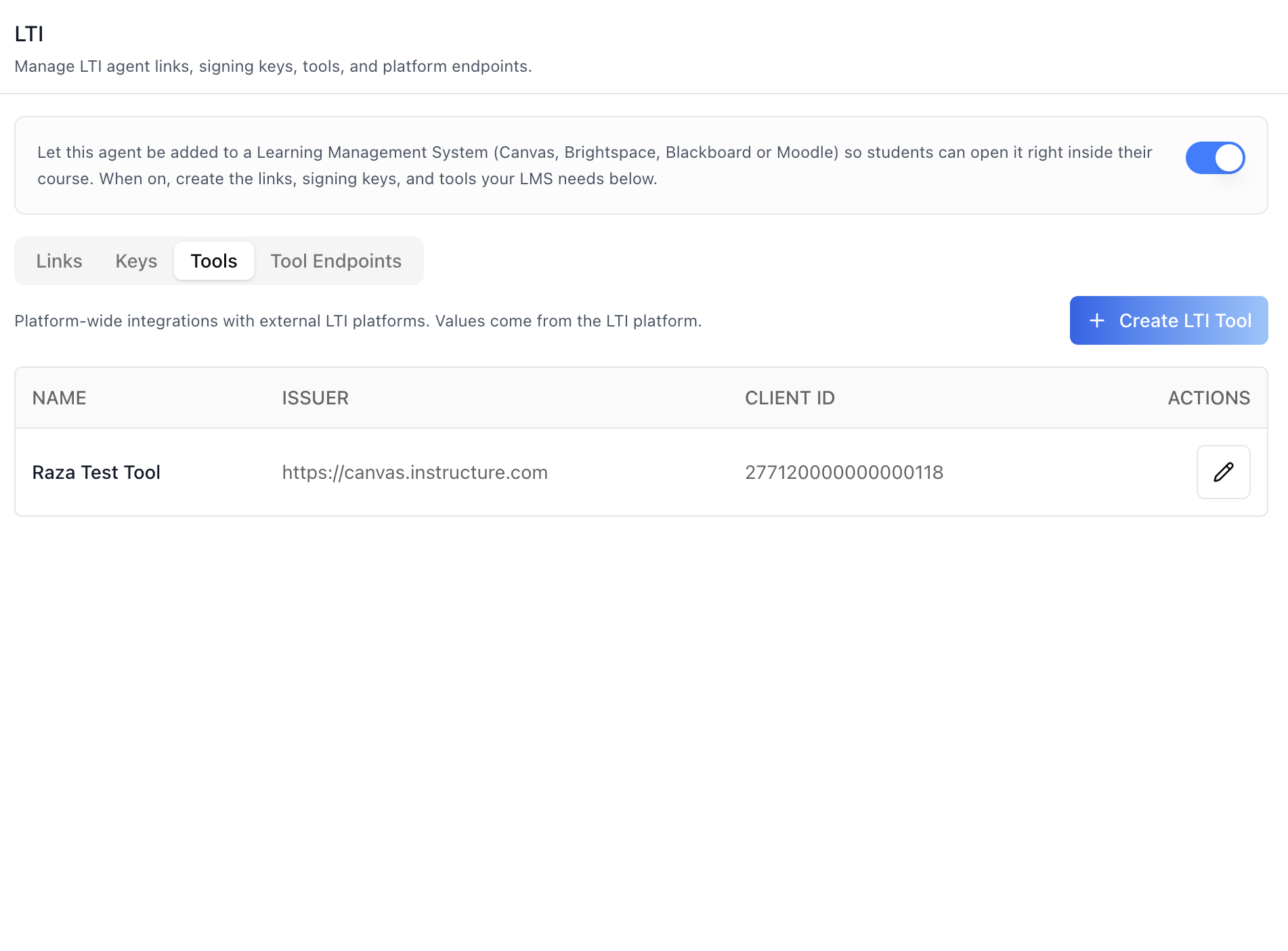

Tools sub-tab

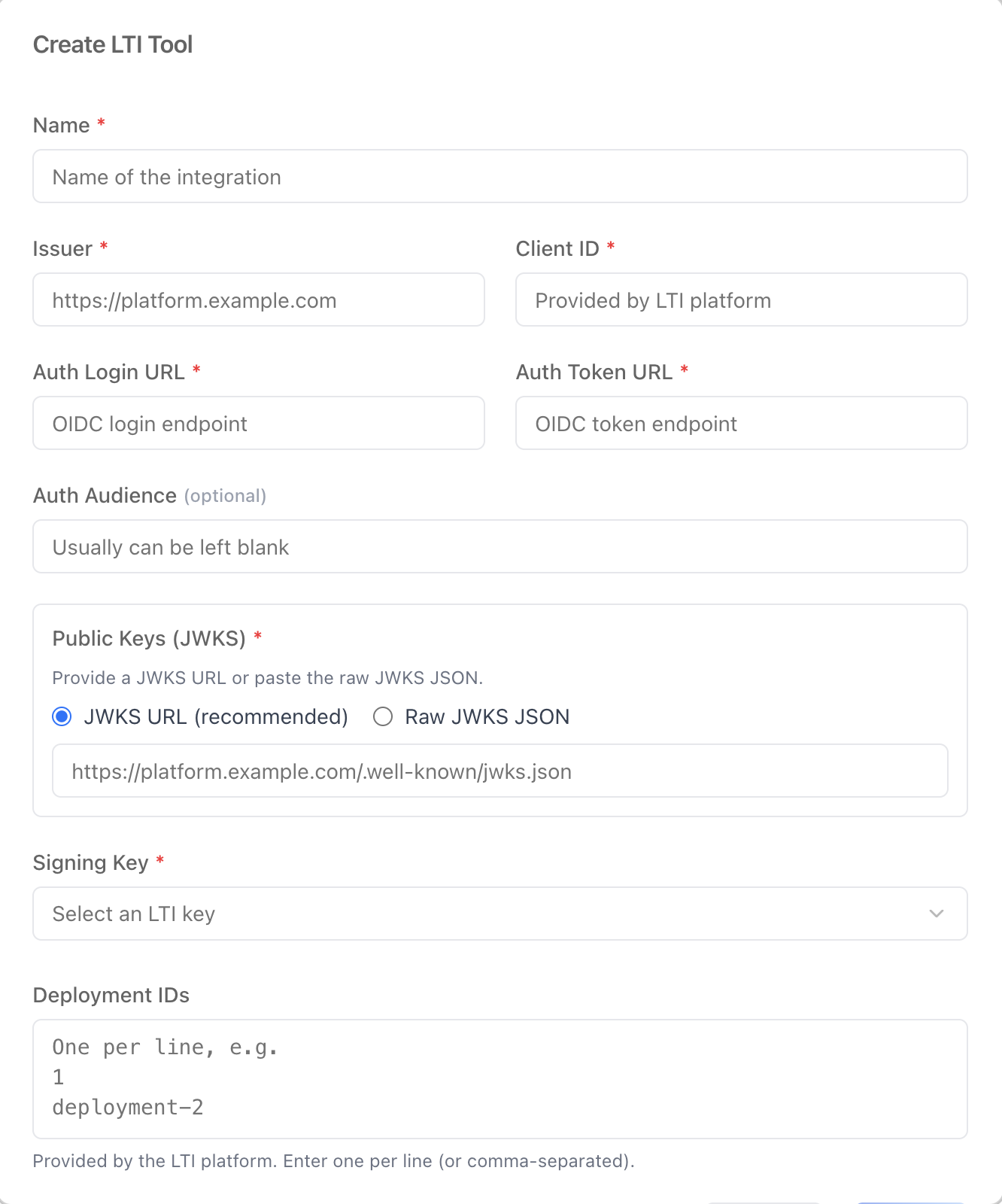

Platform-wide integrations with external LTI platforms (values come from the LTI platform). Table shows Name, Issuer, and Client ID with an edit action. Create/Edit modal collects:

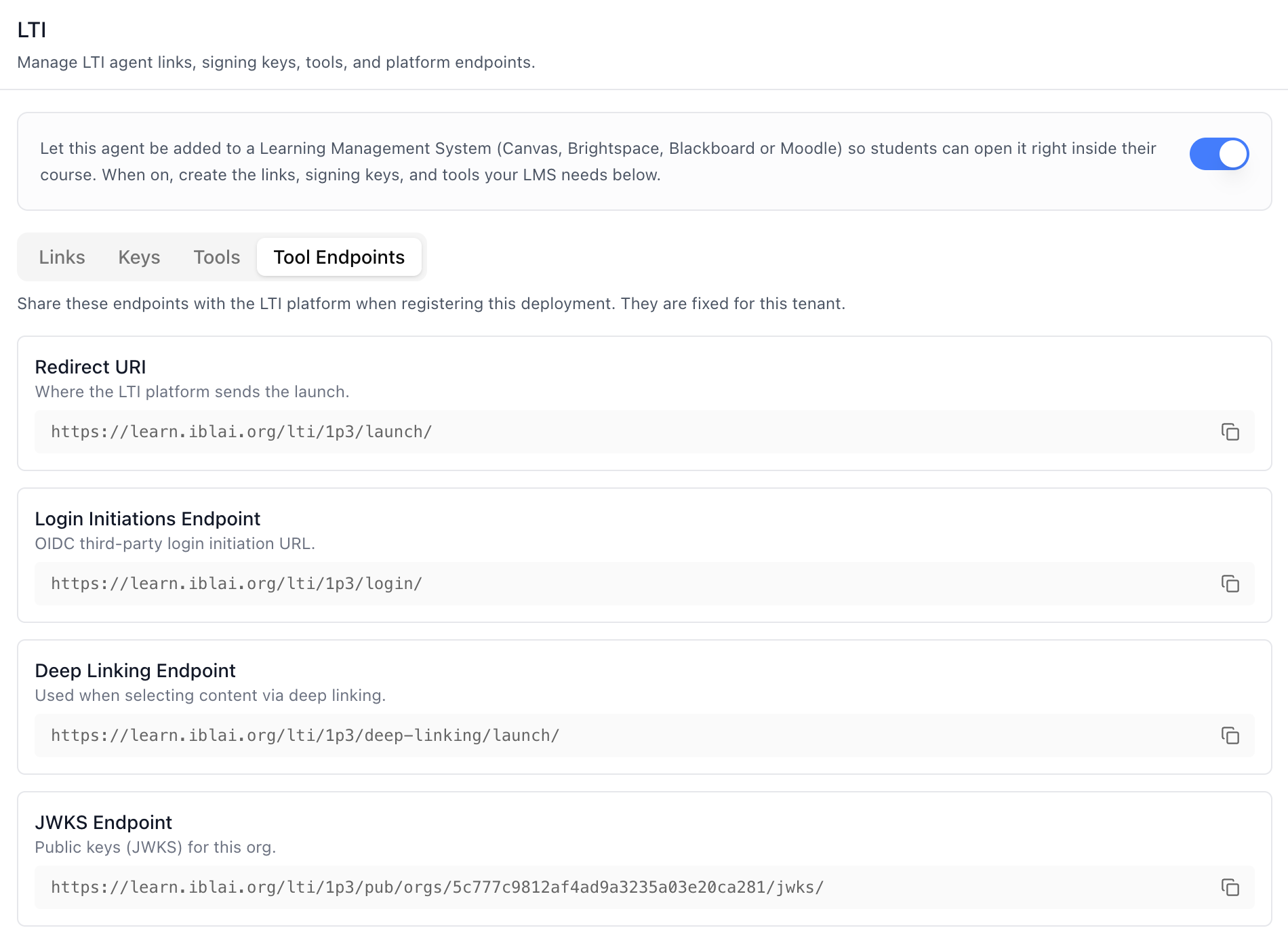

Tool Endpoints sub-tab

Read-only endpoints to share with the LTI platform when registering the deployment. They are fixed for the organization and built from lmsDomain:

Each row has a copy button. All list sub-tabs paginate at 10 rows per page.

Related Exports

From @iblai/iblai-js/web-containers/next:

• AGENT_LTI_TAB_LABELS -- the default agent-facing label bundle.
• LtiTabLabels -- type for the full label bundle.
• AgentLtiTabProps -- props type for the tab.

From @iblai/iblai-js/data-layer -- the RTK Query hooks the tab uses, for custom UI built on the same endpoints:

• Links: useGetLtiMentorsQuery, useCreateLtiMentorMutation (sends async_create: true), useUpdateLtiMentorMutation, useDeleteLtiMentorMutation, useGetLtiMentorDetailQuery (poll a single link by id until its status is ready or failed), plus the LtiAgentLink / LtiAgentLinkStatus types
• Keys: useGetLtiKeysQuery, useCreateLtiKeyMutation, useUpdateLtiKeyMutation, useDeleteLtiKeyMutation
• Tools: useGetLtiToolsQuery, useCreateLtiToolMutation, useUpdateLtiToolMutation
• Toggle + endpoints: useGetMentorSettingsQuery, useEditMentorMutation, useGetPlatformInfoQuery

Step 5: Verify

Run /iblai-vibe-ops-test before telling the user the work is ready:

1. pnpm build -- must pass with zero errors
2. pnpm test -- vitest must pass
3. Touch test /agents/<id>/lti in the browser as /iblai-vibe-ops-test says: open it, use every control this skill added, read the console, check the phone width.

Important Notes

• Redux store: Must include mentorReducer and mentorMiddleware
• initializeDataLayer(): 5 args (v1.2+)
• @reduxjs/toolkit: Deduplicated via webpack aliases in next.config.ts
• Peer deps: sonner and @iblai/iblai-web-mentor must be installed (pnpm add sonner @iblai/iblai-web-mentor)
• Shared provider: AgentSettingsProvider must wrap the route at a layout level. See /iblai-vibe-agent-setting Step 2 for the full snippet.
• lmsDomain is host-supplied: Without it the Tool Endpoints sub-tab cannot build its URLs. Ask the user for their LMS domain.
• Keys and Tools are platform-wide: They are shared across the whole organization, not scoped to this agent. Only the Links sub-tab is agent-specific.
• Delete order: A key associated with an LTI tool cannot be deleted -- remove or re-key the tool first.
• Async link creation: POST lti-mentors/ is sent with async_create: true and returns 202 with { id, status: "pending" } — the course build finishes out of band. Custom UI should poll useGetLtiMentorDetailQuery (or re-fetch the list) until status is ready/failed instead of awaiting the POST; the SDK tab offers a manual Refresh button while a build is in progress and a Retry (delete + re-create) on failure.
• Brand guidelines: BRAND.md
