/iblai-vibe-agent-mcp

Mirrored from iblai/vibe · skills/agents/iblai-vibe-agent-mcp/SKILL.md. This page is generated — edit it in the repository, not here.

Add the agent MCP tab -- the outside services (Model Context Protocol servers) an agent can use in chats. Featured connectors are curated by the platform, Directory lists the MCP directory plus the organization's own connectors, and every card has one switch: on or off for this agent. Configure (the gear) sets how a connector signs in for the agent, whether users may turn it off, and the organization's own OAuth app. The same connectors reach the chat: the composer's + menu gets an MCP row with a per-chat switch per connector, which every user can use. This is one tab in the agent-settings family; all tabs share AgentSettingsProvider.

Common setup (brand, conventions, env files, verification): see docs/skill-setup.md.

Prerequisites

• Auth must be set up first (/iblai-vibe-auth)
• MCP server + skills configured (@iblai/mcp in .mcp.json)
• AgentSettingsProvider must wrap the route (see /iblai-vibe-agent-setting Step 2 if not already set up)
• @iblai/iblai-js@^2.62.1 (resolves @iblai/web-containers 1.62.1): the Featured / Directory tabs, per-agent sign-in scope, "Allow Users to Turn Off", App Credentials and the chat's MCP panel arrived in @iblai/web-containers 1.58.1 and are not in earlier releases
• Ask the user for a real mentorId (agent UUID). Do NOT invent one.

Step 1: Check Environment

Before proceeding, check for an iblai.env in the project root with PLATFORM, DOMAIN, and TOKEN. If it is missing or incomplete, tell the user: "You need an iblai.env with your platform configuration. Download the template and fill in your values: curl -o iblai.env https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/iblai.env"

Step 2: Mount McpTab

// app/(app)/agents/[mentorId]/mcp/page.tsx
"use client";

import { McpTab } from "@iblai/iblai-js/web-containers/next";

export default function AgentMCPPage() {
  return (
    <div className="flex h-full flex-col bg-white">
      <McpTab />
    </div>
  );
}

McpTab reads tenantKey, mentorId, username, enableRBAC and rbacPermissions from AgentSettingsProvider; no props are required.

With a select handler (picker mode)

Inside a picker (the workflow editor's MCP step uses this) pass onSelect: every card gets a Select button; picking a connector that is off turns it on for the agent first (opening its shared sign-in when needed), then calls the handler.

import { McpTab } from "@iblai/iblai-js/web-containers/next";

<McpTab
  onSelect={(server) => {
    console.log("connector selected", server.id, server.name);
  }}
/>;

Step 3: Register mcpApiSlice in the store

The MCP endpoints live on their own slice that mentorReducer / mentorMiddleware do not include, and the Chat composer queries them in every signed-in chat (for the + menu's MCP row). Without it pnpm dev throws Middleware for RTK-Query API at reducerPath "mcpApiSlice" has not been added to the store on the home chat, and a production build stores no MCP response: no MCP row, and the tab never gets its lists. vibe-starter ships the two lines; an older store needs them added:

// store/iblai-store.ts
import { configureStore } from "@reduxjs/toolkit";
import {
  coreApiSlice,
  mentorReducer,
  mentorMiddleware,
  mcpApiSlice,
} from "@iblai/iblai-js/data-layer";
import {
  hostChatReducer,
  chatInputSliceReducer,
  chatSliceReducerShared,
  filesReducer,
  rbacReducer,
  subscriptionReducer,
  topBannerReducer,
} from "@iblai/iblai-js/web-utils";

export const iblaiStore = configureStore({
  reducer: {
    [coreApiSlice.reducerPath]: coreApiSlice.reducer,
    ...mentorReducer,
    [mcpApiSlice.reducerPath]: mcpApiSlice.reducer, // + MCP
    chat: hostChatReducer,
    chatInput: chatInputSliceReducer,
    chatSliceShared: chatSliceReducerShared,
    files: filesReducer,
    rbac: rbacReducer,
    subscription: subscriptionReducer,
    topBanner: topBannerReducer,
  },
  middleware: (getDefaultMiddleware) =>
    getDefaultMiddleware({ serializableCheck: false })
      .concat(coreApiSlice.middleware)
      .concat(mcpApiSlice.middleware) // + MCP
      .concat(...mentorMiddleware),
});

export type IblaiRootState = ReturnType<typeof iblaiStore.getState>;
export type IblaiAppDispatch = typeof iblaiStore.dispatch;

Step 4: Add the sign-in return page

A Connect opens the service's sign-in in a new tab. Where the user lands afterwards is the redirect URI stored on the organization's OAuth client for that service, which the SDK sets to this app's /google-oauth-callback/ (the path is fixed) when the client is registered from this app: Add with OAuth sends this origin's page as oauth-find's callback_url, and App Credentials defaults the Redirect URI to it. Featured connectors on the shared ibl.ai app return to the platform's own page; the tab still completes, since it also polls the user's connected services every 5 s for five minutes. vibe-starter does not ship the page, so add it. It finishes the handshake through the SDK's callback query and tells the opener both ways the SDK listens: postMessage and localStorage.

The stored address is organization-wide: an OAuth connector first added from http://localhost:3000 sends that service's sign-ins for the whole organization, os.ibl.ai included, to localhost. Add OAuth connectors from the deployed host, never from a dev server.

// app/google-oauth-callback/page.tsx
"use client";

import { Suspense, useEffect, useRef } from "react";
import { useSearchParams } from "next/navigation";
import { useLazyConnectedServicesCallbackQuery } from "@iblai/iblai-js/data-layer";

export default function OAuthCallbackPage() {
  // useSearchParams() needs a Suspense boundary in the App Router.
  return (
    <Suspense fallback={null}>
      <OAuthCallback />
    </Suspense>
  );
}

function OAuthCallback() {
  const searchParams = useSearchParams();
  const [finishSignIn] = useLazyConnectedServicesCallbackQuery();
  const started = useRef(false);

  useEffect(() => {
    if (started.current) return;
    started.current = true;
    // Relay the provider's query string as is (never alter `state`).
    const params: Record<string, string> = {};
    searchParams.forEach((value, key) => {
      params[key] = value;
    });
    params.redirect_uri = `${window.location.origin}/google-oauth-callback/`;

    finishSignIn(params)
      .unwrap()
      .then((result) => {
        const done = {
          connectedServiceId: result?.id as number | undefined,
          provider: result?.provider as string | undefined,
          serviceName: result?.service as string | undefined,
          serverId: readPendingServer()?.serverId,
          timestamp: Date.now(),
        };
        window.opener?.postMessage(
          { type: "GOOGLE_AUTH_SUCCESS", ...done },
          window.location.origin,
        );
        try {
          localStorage.setItem("oauth_connection_complete", JSON.stringify(done));
        } catch {
          // Private mode: the postMessage above still reaches the opener.
        }
      })
      .catch(() => {
        // The opener keeps polling and gives up after its own timeout.
      })
      .finally(() => setTimeout(() => window.close(), 1000));
  }, [searchParams, finishSignIn]);

  return <p className="p-6 text-sm text-gray-600">Finishing sign-in…</p>;
}

// The SDK stores the connector a sign-in was started for.
function readPendingServer(): { serverId?: number } | null {
  try {
    return JSON.parse(localStorage.getItem("oauth_pending_server") ?? "null");
  } catch {
    return null;
  }
}

Keep the page outside AuthProvider / TenantProvider, as the starter does for /sso-login: the callback endpoint needs no session, and if the auth check fails in the tab (an expired token, a sign-out elsewhere) the redirect keeps only the pathname, so code and state are lost and the opener gives up after five minutes. In providers/iblai-providers.tsx, widen the one check both providers' skip reads:

const isSsoRoute =
  (pathname?.startsWith("/sso-login") || pathname?.startsWith("/google-oauth-callback")) ?? false;

For a connector that signs in through the organization's own OAuth app, https://<your host>/google-oauth-callback/ is the Redirect URI to register with the service (the Configure dialog shows and copies it).

Step 5: Use MCP Tools for Customization

get_component_info("McpTab")
get_component_info("McpServersMenu")
get_component_info("AgentSettingsProvider")
get_api_query_info("useGetMCPServersQuery")

<McpTab> Props

Import from @iblai/iblai-js/web-containers/next.

What the tab renders

• Header -- "MCP" and its one-line description.
• Filters bar -- search by name, a date-range picker (by created_at), and a transport filter (All / SSE / WebSocket / Streamable HTTP; the WebSocket choice makes the list requests fail, see below).

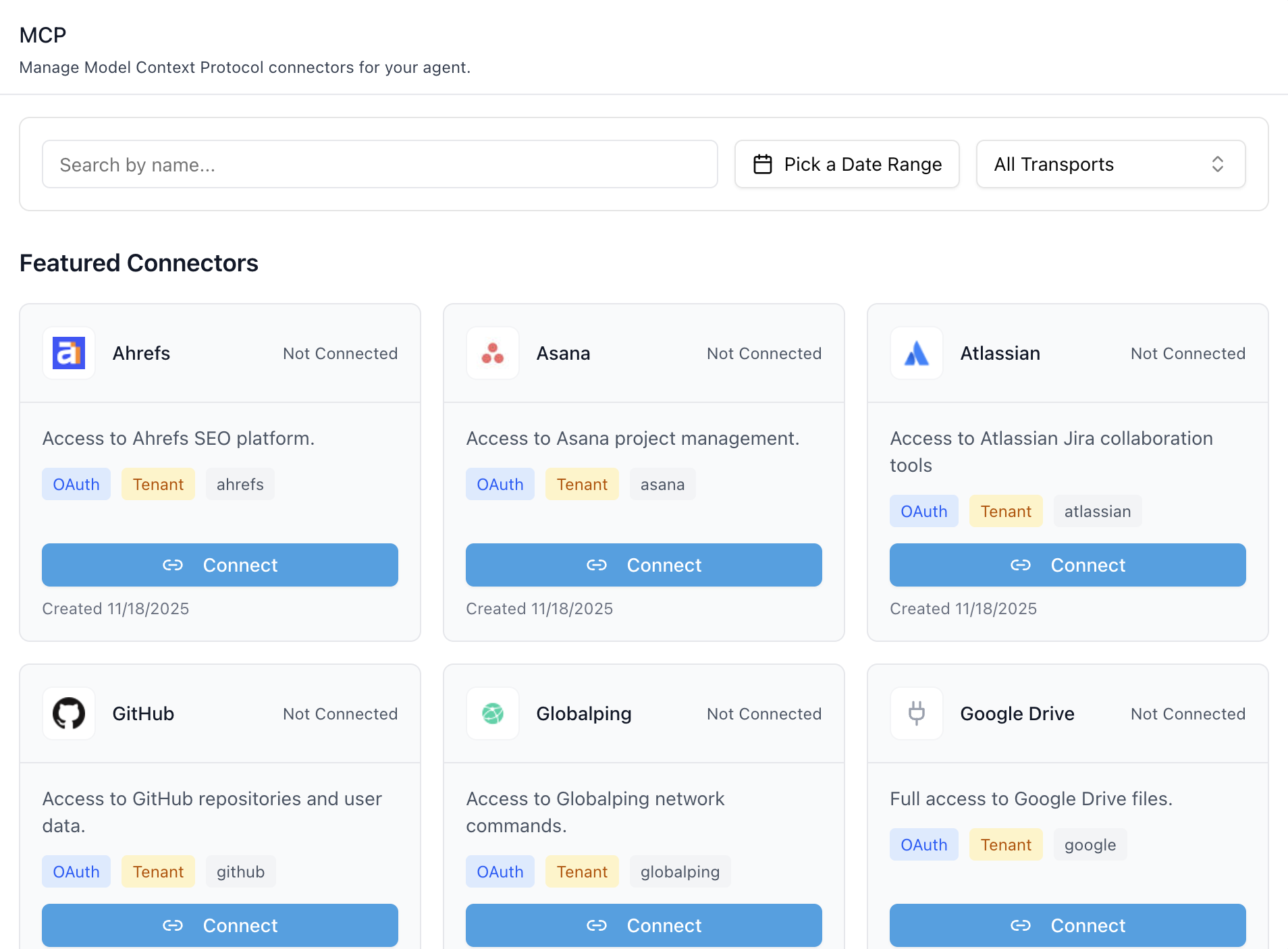

• Featured / Directory sub-tabs, shown as soon as the organization has featured connectors. Featured is the platform-curated set (is_featured), Directory is everything else the agent may use: the MCP directory (registry.source === "registry") and the organization's own connectors (include_global, agent-bound ones included). 12 cards a page, with a pager per list.
• A card -- logo, name, a scope pill for sign-in connectors (User, Agent or Organization: whose account the agent uses; hover explains), a transport chip (Directory only), the description, and the actions:
  • the switch -- "On for this agent" / "Off for this agent". On adds the connector to the agent's mcp_servers and, the first time, the mcp tool with can_use_tools; off removes it, and the last one off drops the mcp tool again. A connector that signs in once for everyone (scope Agent or Organization) with no such sign-in yet also opens that sign-in when switched on.
  • the gear -- Configure (below).
  • the trash -- Directory only, the organization's own connectors only, with the delete permission. Featured and directory connectors cannot be edited or deleted by an organization.

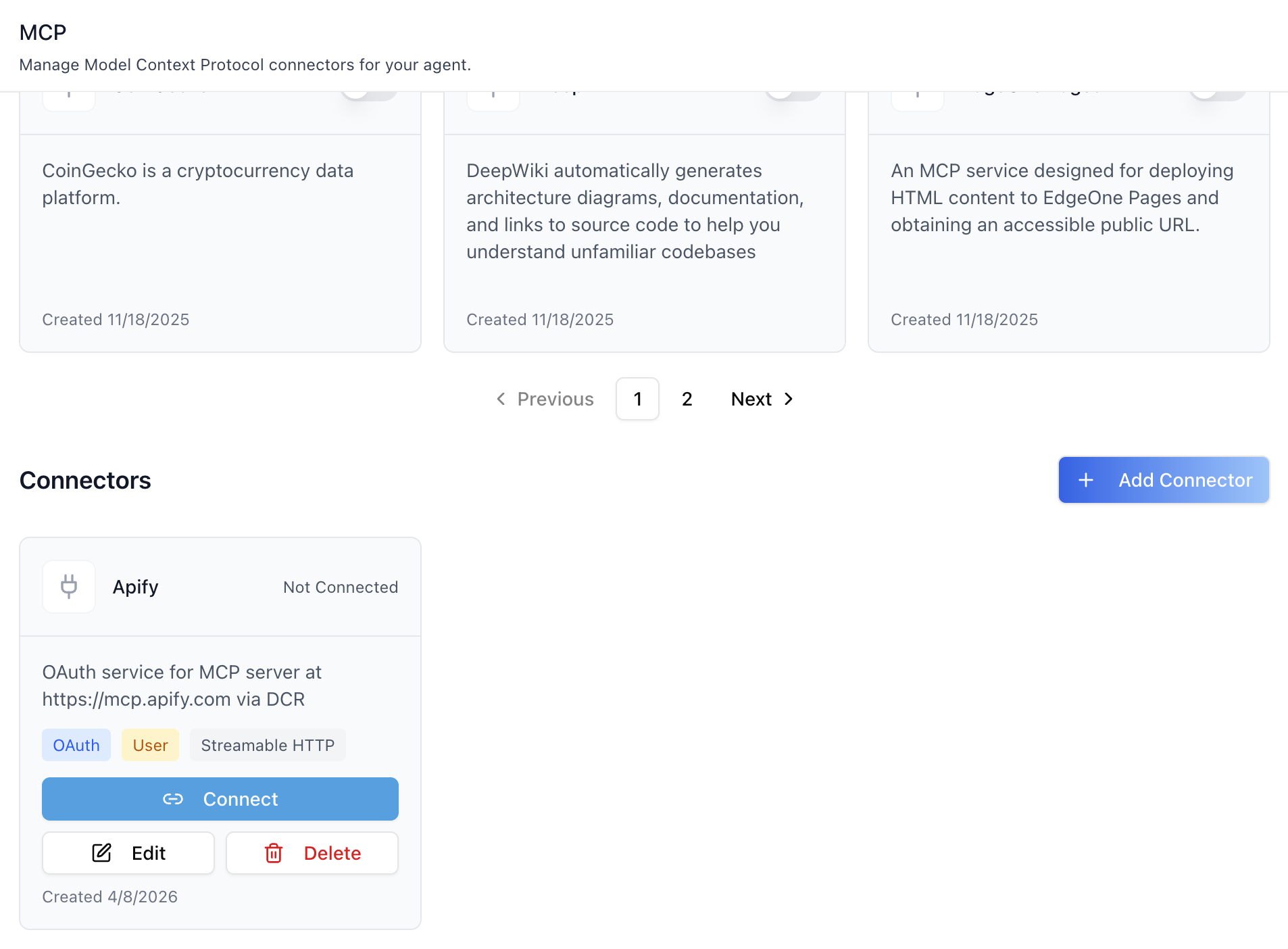

• Add Connector -- needs the /mcpservers/#create permission.

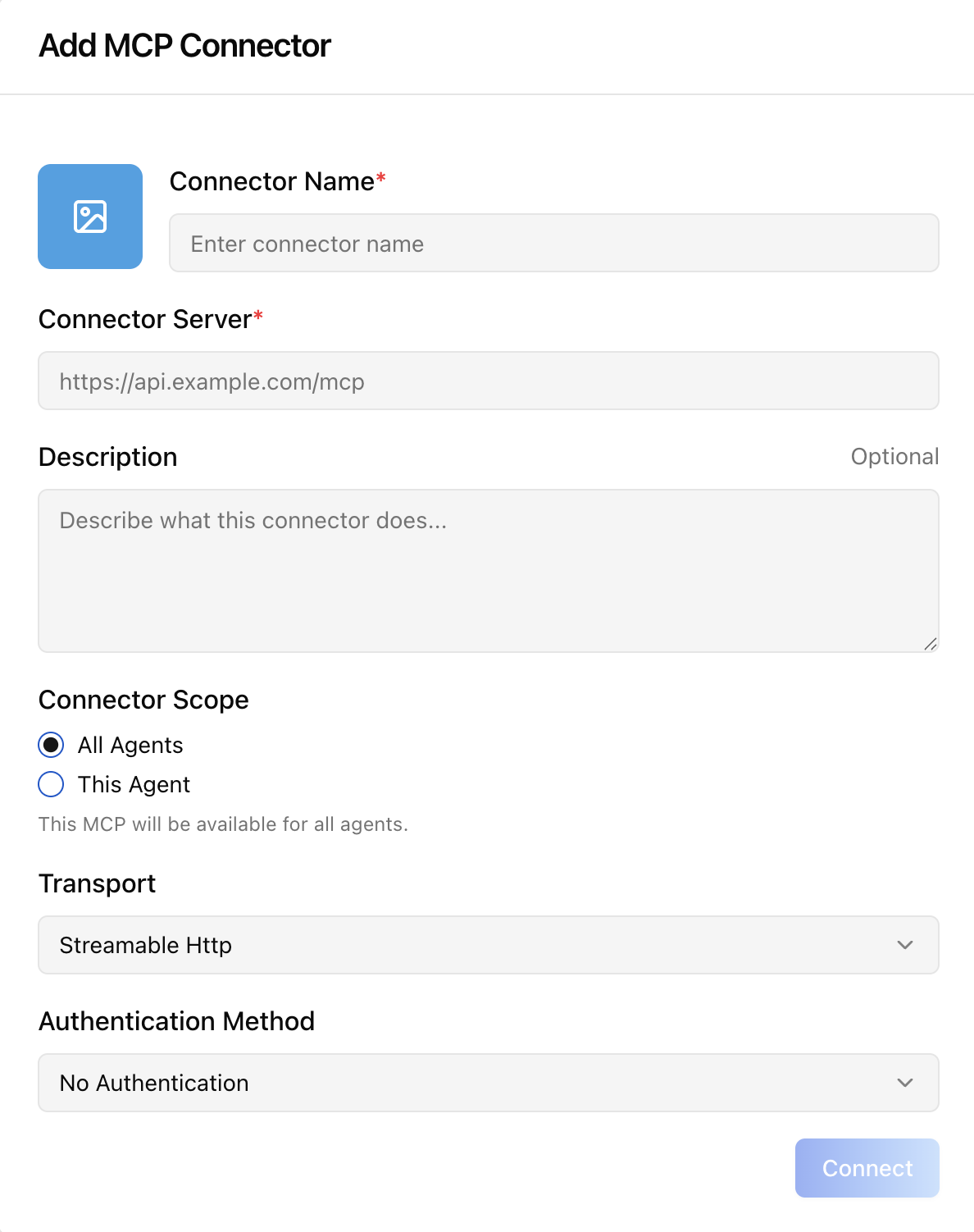

Add MCP Connector

Connect saves the connector and turns it on for the agent. For OAuth it first asks the platform to find the service's sign-in settings (oauth-find), then opens the sign-in. When the service cannot register an app by itself, publishes no sign-in settings, or the organization already has an app for it, the dialog stays open and shows App Credentials: the Redirect URI to register with the service (copy button), Client ID, Client Secret (blank for a public app), and under Advanced the Permissions (scopes, pre-filled from what was discovered), How the Secret Is Sent (in the request, HTTP Basic, or none), Extra Sign-In / Token Settings (name=value lines), and the Authorization URL / Token URL when the service publishes none. Save, and the sign-in opens through that app. A server that did not answer, a blocked address or a timeout shows one sentence under the address instead.

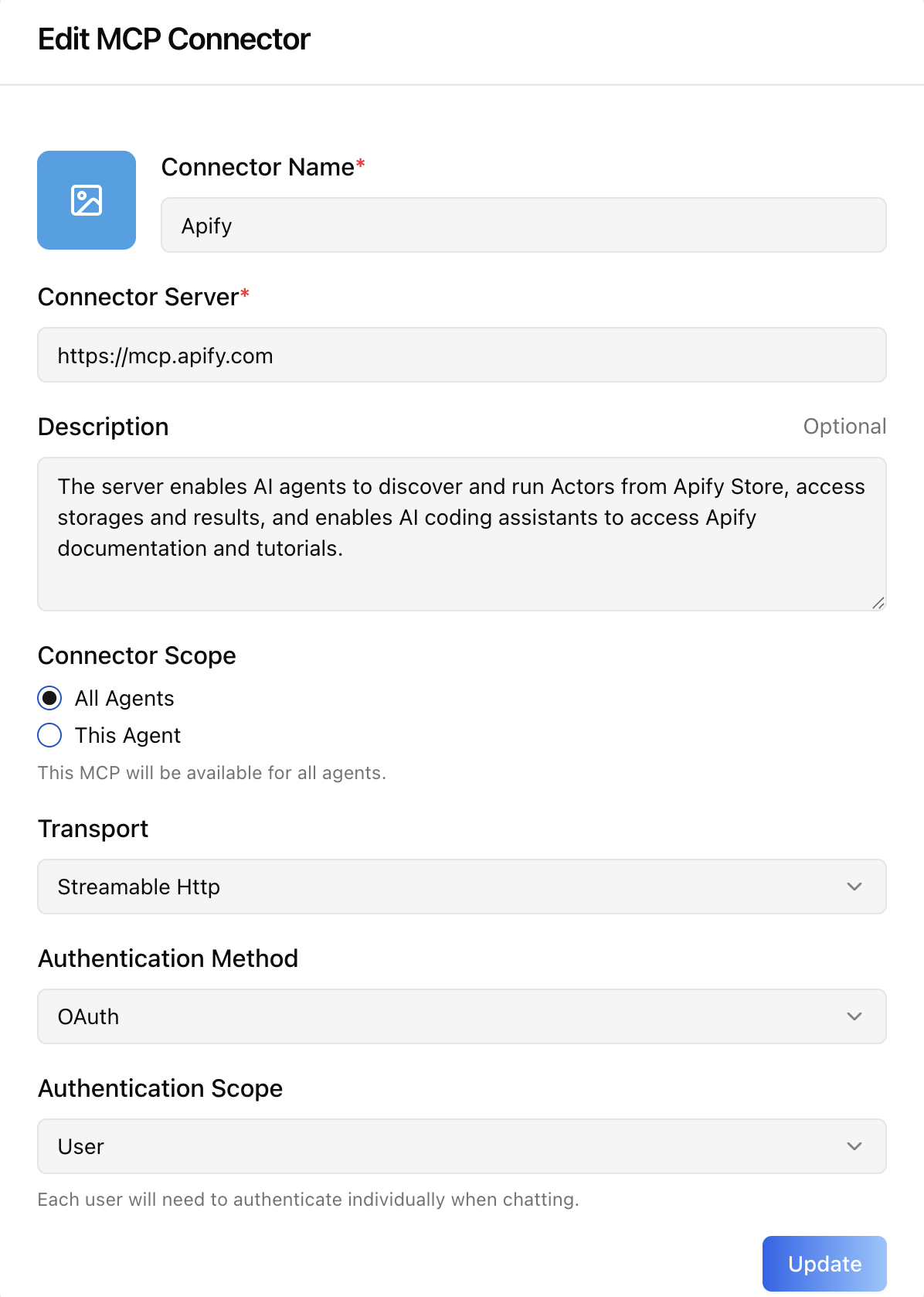

Configure MCP Connector

The gear opens the same form on an existing connector. For the organization's own connector everything is editable (changing the server address of an OAuth connector restarts the sign-in). For a featured or directory connector the fields are read-only; only two settings, both for this agent, and the organization's App Credentials can change:

• Authentication Scope -- stored as the agent's override of the connector's own scope; the card's pill follows it. Choosing Agent or Organization while the agent has no such sign-in turns the connector off until it is switched on again (which opens the sign-in).
• Allow Users to Turn Off -- shown, but the platform refuses it for a featured or directory connector (404 unless your organization owns the connector; the tab says "Your organization can't change this setting"). Only the owning organization can make such a connector mandatory.

Under Authentication Scope, Connection shows Connected / Not Connected with Connect or Disconnect for the saved scope: the admin's own sign-in for User scope, the shared account otherwise. Disconnecting a shared sign-in also turns the connector off for the agent. App Credentials shows the organization's app for an OAuth connector (secret masked, "Saved. Enter a new one to replace it."), with Remove Credentials; everyone who signed in through it must sign in again.

The chat's MCP panel (for every user)

Chat (/iblai-vibe-agent-chat) adds an MCP row to the composer's + menu by itself when the user is signed in, the chat is not embedded, and the agent has at least one connector on. Its badge counts the connectors that are on for this chat and signed in. The panel lists the agent's connectors (name, logo, description) with one switch each:

• On / Off for this chat -- saved as the user's choice for this conversation and applied from their next message. A new chat starts on (or from the user's lasting choice, which only the API sets).
• a lock -- "Required by your organization": the connector was saved with Allow Users to Turn Off off, so the switch cannot move.
• a User-scope OAuth connector the person has not signed in to shows off; turning it on opens their own sign-in (an explainer dialog says so once per user; pop-ups must be allowed) and the agent uses it from the next message. Shared sign-ins are never done from the chat.

With RBAC off, anyone who can chat gets the panel. With RBAC on, the row needs read access to the agent's mcp_servers field (Ibl.Mentor/Settings/mcp_servers/read): the seeded chat role does not have it, the settings read then omits the servers, and students see no MCP row until the role is granted it. Embedded chats (embed) never show the row.

Who sees what

The tab shows a control when the RBAC grant allows it; the platform then decides for itself, and the two do not always agree:

With enableRBAC off, everything is shown; the platform's rules still apply.

The five switches, side by side

Custom composer: McpServersMenu

The chat's panel is also exported on its own, from @iblai/iblai-js/web-containers.

Step 6: Verify

Run /iblai-vibe-ops-test before telling the user the work is ready, and give every page, control and state this skill added its own checkpoint — one Playwright test titled <ID> · … in e2e/journeys/, listed in e2e/coverage.json; pnpm e2e:coverage must pass: every page, control and state this skill added its own checkpoint — one Playwright test titled <ID> · … in e2e/journeys/, listed in e2e/coverage.json; pnpm e2e:coverage must pass:

1. pnpm build -- must pass with zero errors
2. pnpm test -- vitest must pass
3. Touch test /agents/<id>/mcp in the browser as /iblai-vibe-ops-test says: switch a Directory connector on and off, open Configure on a featured one, add a connector with No Authentication, then open the home chat and check the + menu's MCP row and its switch; read the console, check the phone width.

Important Notes

• Redux store: mentorReducer and mentorMiddleware plus mcpApiSlice (Step 3); the MCP endpoints are not part of the first two.
• initializeDataLayer(): 5 args (v1.2+); @reduxjs/toolkit deduplicated via webpack aliases in next.config.ts
• Peer deps: sonner and @iblai/iblai-web-mentor (pnpm add sonner @iblai/iblai-web-mentor)
• Shared provider: AgentSettingsProvider wraps the route at layout level (/iblai-vibe-agent-setting Step 2).
• The return page (Step 4) is part of this skill, not optional: every OAuth client registered from this app sends its sign-ins there. Register it from the deployed host; for a hand-entered app, register the Redirect URI the Configure dialog shows at the service.
• Sign-in from the chat needs the agent's connector to be User scope; Agent and Organization sign-ins are made from this tab by someone who manages the agent, as the shared account everyone will use.
• A connector off for the organization (is_enabled: false, set through the API) is never used, whatever the agent or the user chose, and does not appear in the chat's panel.
• Tools tab: the switch here adds and removes the mcp tool slug; /iblai-vibe-agent-tool shows the same switch among the other tools.
• Brand guidelines: BRAND.md

Related Exports

From @iblai/iblai-js/web-containers/next: McpTab, McpTabProps.

From @iblai/iblai-js/web-containers: McpServersMenu, McpServersMenuProps.

From @iblai/iblai-js/data-layer -- the hooks the tab and the panel use, for custom UI: useGetMCPServersQuery (mentorUniqueId, includeGlobal, isFeatured, isEnabled, sessionId, search, transport, pageSize), useCreateMCPServerMutation, usePartialUpdateMCPServerMutation, useDeleteMCPServerMutation, useOauthFindMutation, useLazyStartOAuthFlowQuery, useLazyConnectedServicesCallbackQuery, useGetConnectedServicesQuery, useDisconnectServiceMutation, useGetMCPServerConnectionsQuery, useCreateMCPServerConnectionMutation, useGetMCPServerMentorAuthScopeQuery / useSetMCPServerMentorAuthScopeMutation, useGetMCPServerPreferenceQuery / useSetMCPServerPreferenceMutation, useGetMCPServerSessionPreferenceQuery / useSetMCPServerSessionPreferenceMutation, useGetMCPServerCredentialsQuery / useSetMCPServerCredentialsMutation / useDeleteMCPServerCredentialsMutation; types MCPServer, MCPServerConnection, ConnectedService, MCPAuthScope, MCPServerOAuthCredentials, OAuthFindDiagnostic.

REST behind the tab

Under ${dmUrl}/api/ai-mentor/orgs/{org}/users/{user_id}/, where dmUrl is ${NEXT_PUBLIC_API_BASE_URL}/dm (config.dmUrl() in the starter); sign-in services under ${dmUrl}/api/ai-account/. Bodies and errors: /iblai-api-agent-mcp.
