/iblai-vibe-agent-sandbox

Mirrored from iblai/vibe · skills/agents/iblai-vibe-agent-sandbox/SKILL.md. This page is generated — edit it in the repository, not here.

Add the agent Sandbox tab -- choose how the agent runs code and, for Claw, manage its sandbox workspace. A Sandbox Type card picks one of three mutually exclusive kinds:

• Computing Runtime — a lightweight JavaScript calculator for quick computations; the low-cost option.
• Virtual Machine Shell — a full Linux virtual machine: the agent can write files and run real shell commands in an isolated sandbox.
• Claw — a dedicated Claw worker: a persistent agent host with its own skills and plugins, billed by usage. This is the original OpenClaw sandbox flow — selecting it reveals the instance management sections below the card.

With Claw selected, the tab connects the agent to an OpenClaw instance and edits the agent-workspace prompt files (Identity, Soul, User Context, Tools, Agents, Bootstrap, Heartbeat, Memory) backing the agent's runtime behaviour. Push pulls the current configuration onto the connected sandbox; Auto Push on Save pushes after every edit.

With Virtual Machine Shell selected, a Network Access section appears under the card — the VM's egress profile, its network policy and its secrets. That section has its own skill: /iblai-vibe-agent-virtual-machine (and /iblai-vibe-virtual-machine for the organization-wide policies and secrets it draws on).

Agent Skills are managed independently of the sandbox — see /iblai-vibe-agent-skills for the Skills surface (skills catalog, per-agent assignment, skill resources, and the chat / picker).

Common setup (brand, conventions, env files, verification): see docs/skill-setup.md.

OpenClaw workspace & sandbox runtime

• Post-installation setup — install this repo's skills into the OpenClaw agent and swap the workspace AGENTS.md: references/openclaw-post-installation-setup.md.
• NemoClaw sandbox hardening — running the agent inside a NemoClaw / OpenShell sandbox: references/nemoclaw-sandbox.md.

Prerequisites

• Auth must be set up first (/iblai-vibe-auth)
• MCP server + skills configured (@iblai/mcp in .mcp.json)
• Ask the user for a real mentorId (agent UUID). Do NOT invent one.
• Only for the Claw kind: a reachable OpenClaw instance URL plus a Gateway Token to register the first instance. Without one, the Sandbox section sits empty ("Add Instance") and the Prompts section is gated until a config is connected. Computing Runtime and Virtual Machine Shell need no external instance — they are single toggles.

Step 1: Check Environment

Before proceeding, check for an iblai.env in the project root. Look for PLATFORM, DOMAIN, and TOKEN variables. If the file does not exist or is missing these variables, tell the user: "You need an iblai.env with your platform configuration. Download the template and fill in your values: curl -o iblai.env https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/iblai.env"

Step 2: Mount the two sections

SandboxConfig and AgentConfigPrompts are independent components — neither reads from AgentSettingsProvider. They each take platformKey and mentorUniqueId as required props. Compose them on a single page so the user sees Sandbox → Prompts, top to bottom.

// app/(app)/agents/[mentorId]/sandbox/page.tsx
"use client";

import { useEffect, useState } from "react";
import { useParams } from "next/navigation";
import {
  SandboxConfig,
  AgentConfigPrompts,
} from "@iblai/iblai-js/web-containers";

export default function AgentSandboxPage() {
  const { mentorId } = useParams<{ mentorId: string }>();
  const [platformKey, setPlatformKey] = useState("");
  const [username, setUsername] = useState("");

  useEffect(() => {
    try {
      const raw = localStorage.getItem("userData");
      if (raw) {
        const parsed = JSON.parse(raw);
        setUsername(parsed.user_nicename ?? parsed.username ?? "");
      }

      const resolvedTenant =
        localStorage.getItem("app_tenant") ??
        (() => {
          try {
            return JSON.parse(localStorage.getItem("current_tenant") ?? "{}").key;
          } catch { return undefined; }
        })() ??
        localStorage.getItem("tenant") ??
        "";
      setPlatformKey(resolvedTenant);
    } catch {}
  }, []);

  if (!platformKey) return null;

  return (
    <div className="flex h-full flex-col gap-8 bg-white p-6">
      <SandboxConfig
        platformKey={platformKey}
        mentorUniqueId={mentorId}
        username={username}
      />
      <AgentConfigPrompts
        platformKey={platformKey}
        mentorUniqueId={mentorId}
      />
    </div>
  );
}

AgentConfigPrompts self-gates on the connected sandbox config — it calls useGetClawMentorConfigQuery and short-circuits when no config exists, so it is safe (and intended) to mount both together. The Prompts section appears only after the user connects an instance.

SandboxConfig's username prop is optional — if omitted, the component falls back to getUserName() (which reads from localStorage.userData). Pass it explicitly when you already have it to avoid the extra read.

Step 2.5: Sandbox types (enable_computational_runtime / enable_virtual_machine / enable_claw)

The Sandbox Type card at the top of SandboxConfig selects how the agent runs code. Three boolean flags back it, all read from the agent's settings and written through the standard agent-settings update endpoint:

The kinds are mutually exclusive — only one can be enabled at a time. The component enforces this client-side: enabling one kind turns the other two off in the same PATCH, and toggling the active kind off leaves none enabled. Switches flip optimistically and revert with an error toast if the save fails.

SandboxConfig handles all of this itself (via useGetMentorSettingsQuery + useEditMentorMutation), so the host app no longer needs to gate the Sandbox tab on enable_claw — mount the tab and let users pick a type. Custom UI toggling the flags directly should mirror the exclusivity:

import { useEditMentorMutation } from "@iblai/iblai-js/data-layer";

const [editMentor] = useEditMentorMutation();

// Select Virtual Machine Shell (turning the other kinds off):
await editMentor({
  mentor: mentorUniqueId,
  org: platformKey,
  userId: username,
  formData: {
    enable_claw: false,
    enable_computational_runtime: false,
    enable_virtual_machine: true,
  },
}).unwrap();

Pre-existing Claw instances and bound configs are preserved when switching kinds — the flags only affect which sandbox the agent uses and which sections render, not the stored data.

Step 3: Use MCP Tools for Customization

get_component_info("SandboxConfig")
get_component_info("AgentConfigPrompts")
get_component_info("LLMProviderModal")

Component Props

Both components import from @iblai/iblai-js/web-containers.

<SandboxConfig>

<AgentConfigPrompts>

What each section renders

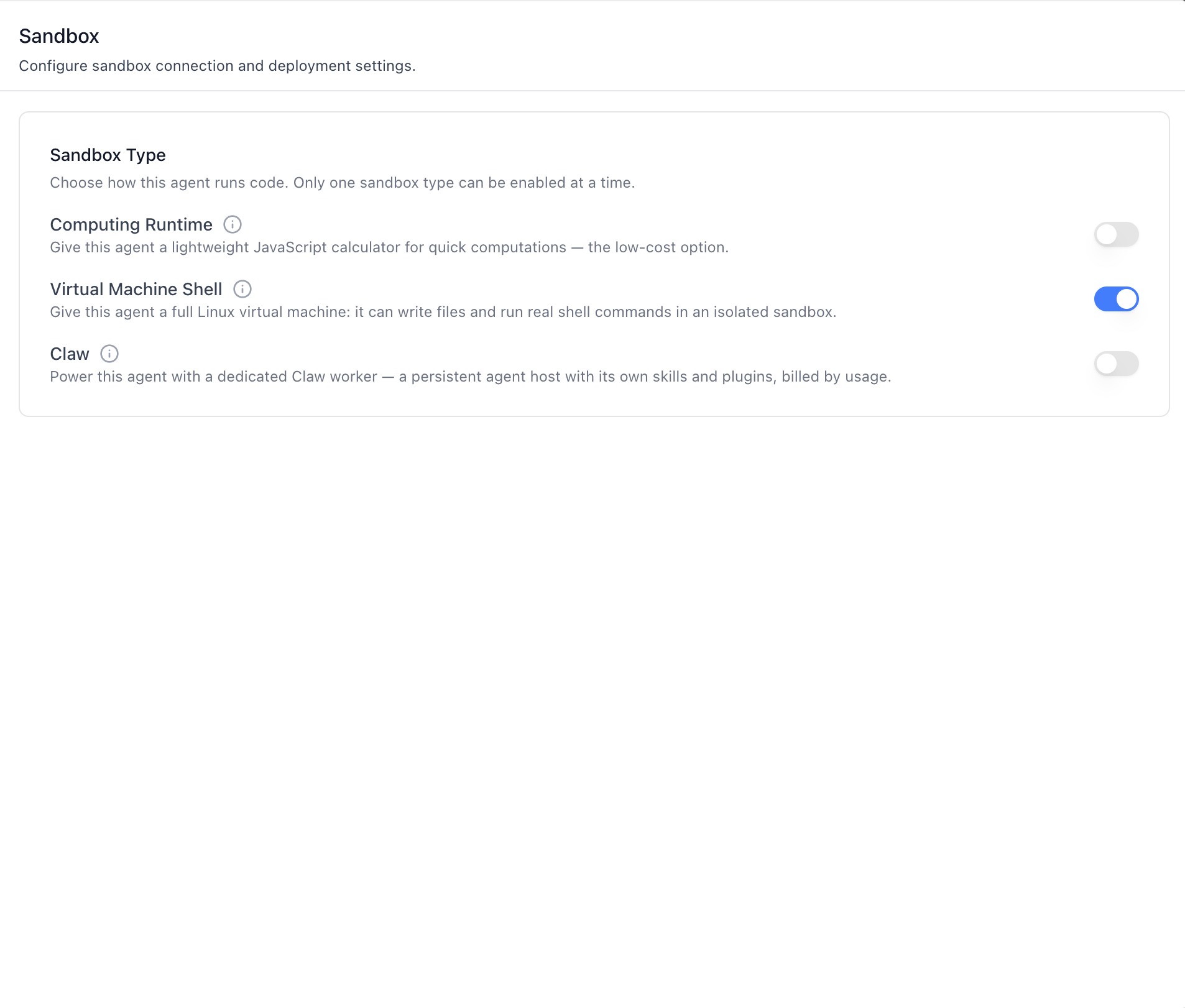

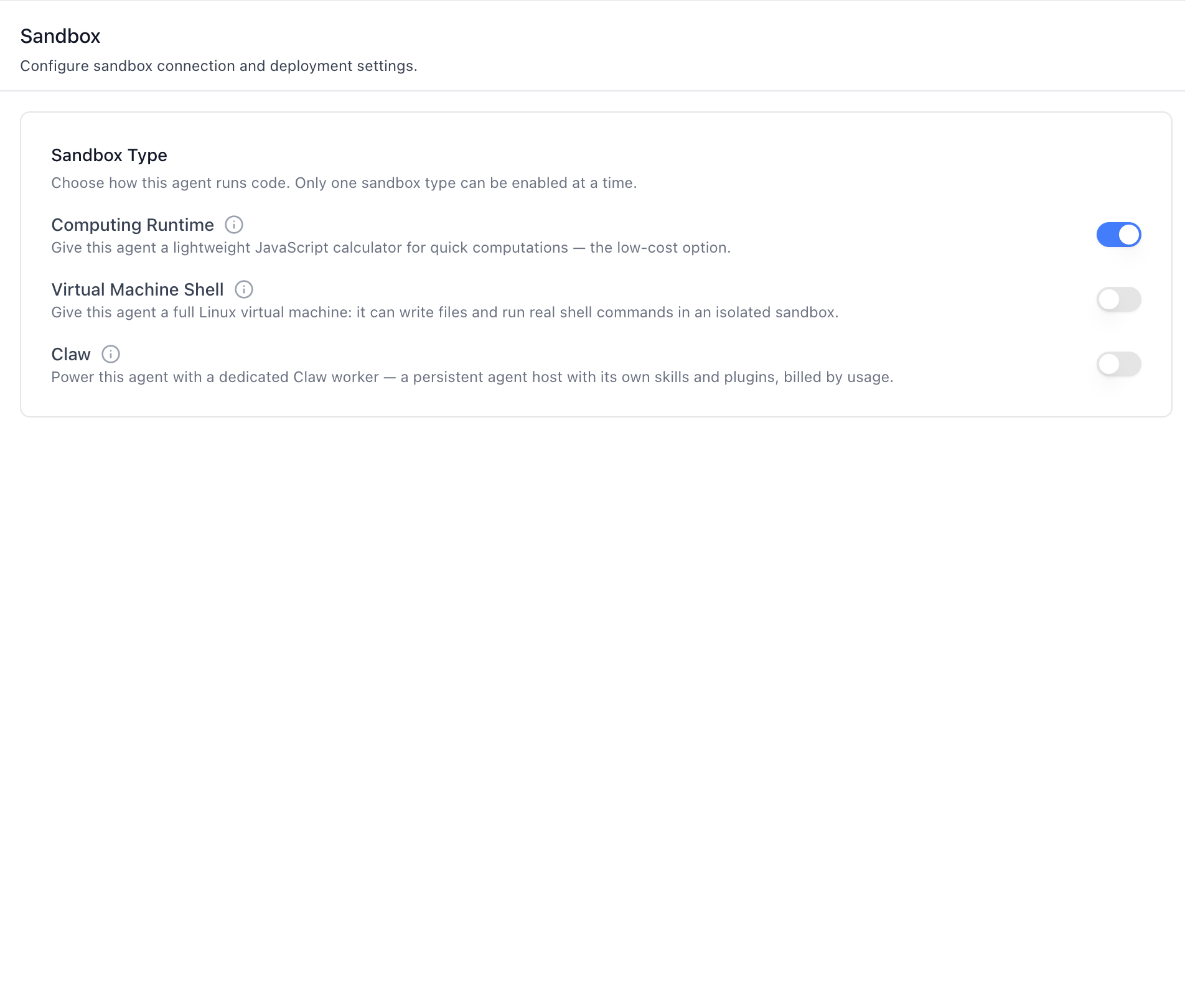

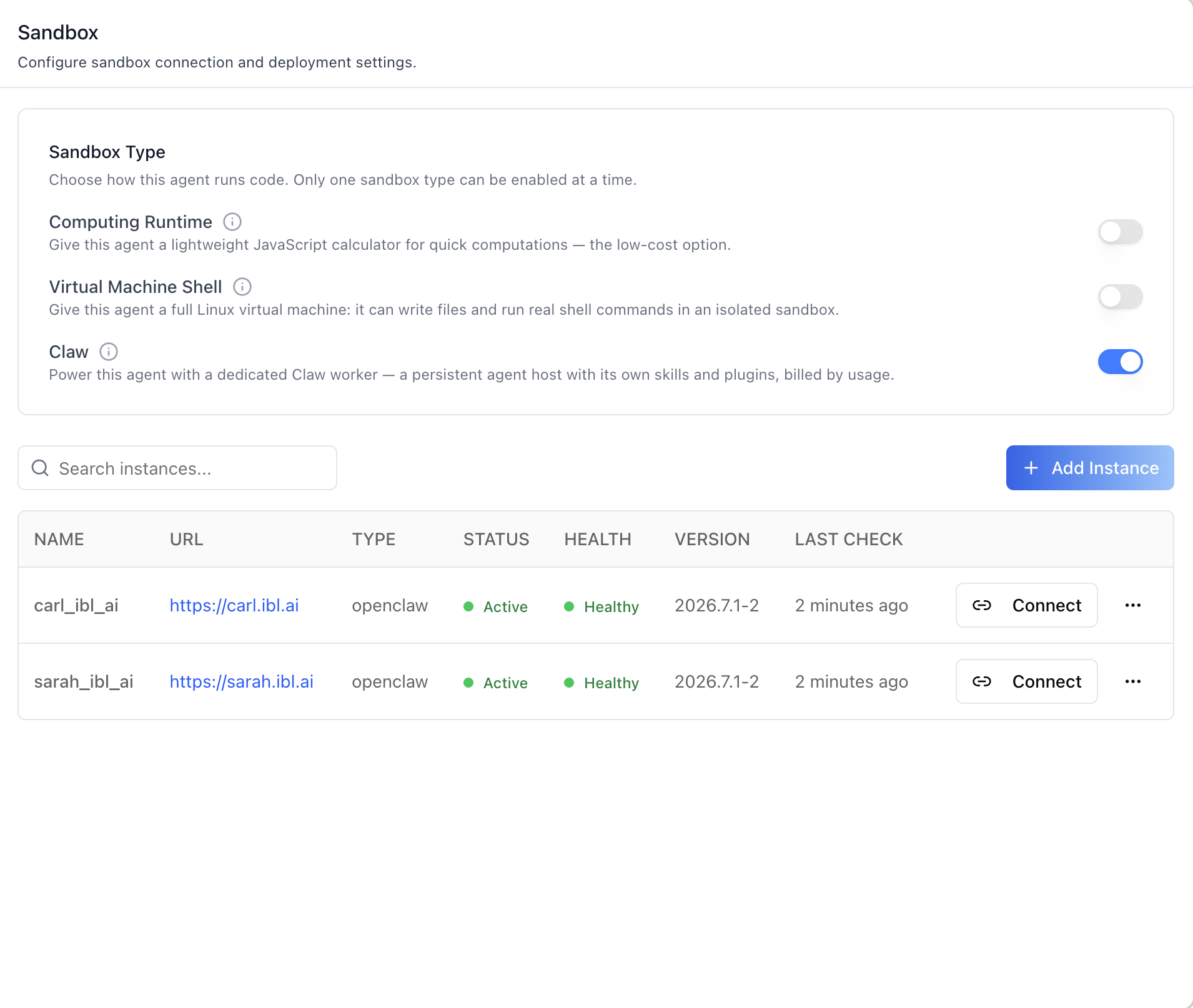

Sandbox Type (kind selection)

• Three toggle rows — Computing Runtime, Virtual Machine Shell, Claw — each with an info tooltip carrying the longer explanation. "Only one sandbox type can be enabled at a time": enabling one turns the others off in the same save; switches update optimistically and revert on failure.
• Everything below the card (instances, connected card, Auto Push, Push, Model) renders only while Claw is the selected kind — the claw-config query is skipped entirely for the other kinds.

Sandbox (instance management + connection — Claw only)

• Instances table — searchable, paginated (5 per page). Columns: Name, URL, Type, Status (Active / Error), Health (Healthy / Unhealthy with full error in tooltip), Version, Last Check.

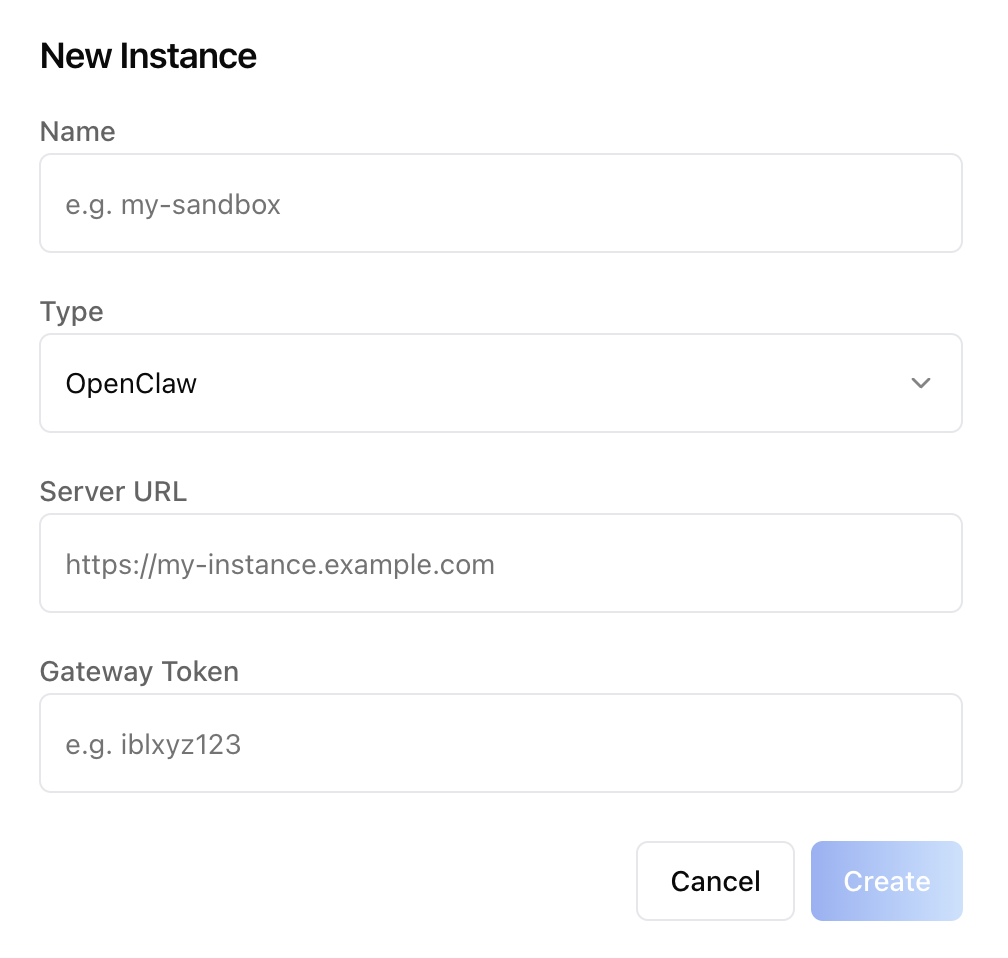

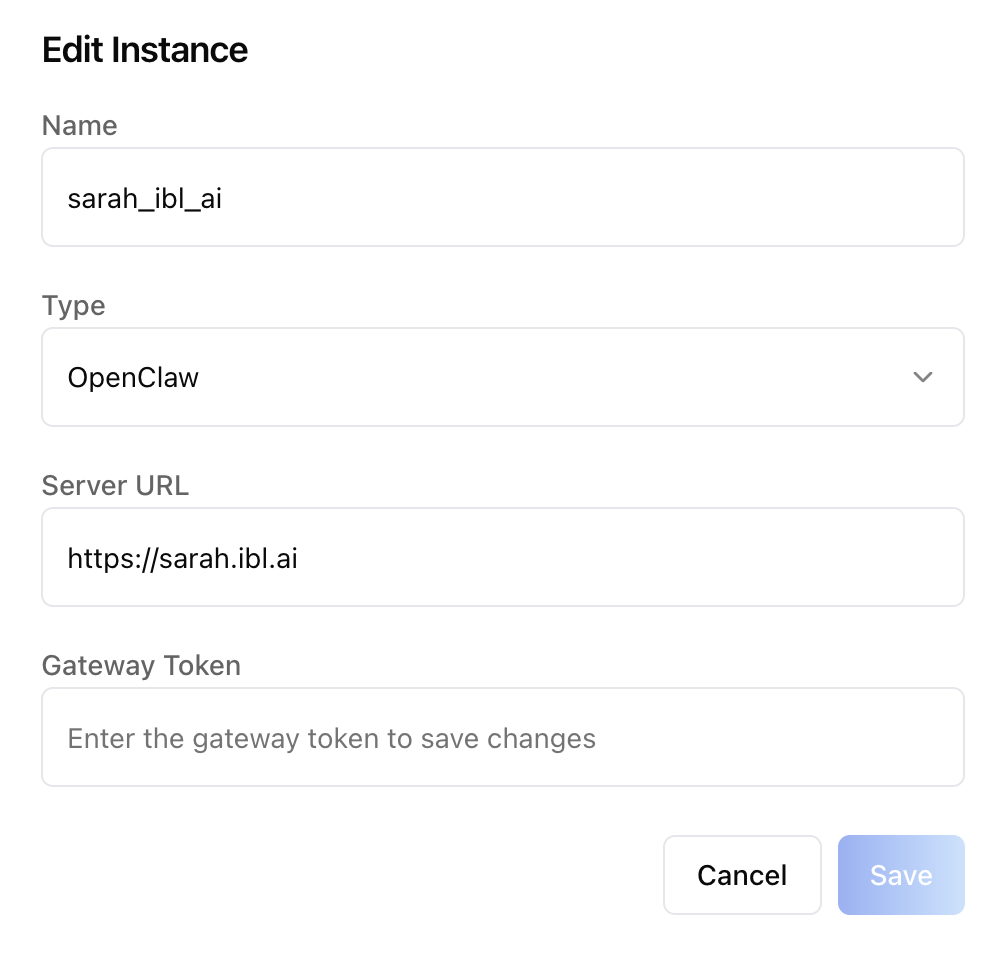

• Add Instance — opens a "New Instance" dialog: Name, Type (OpenClaw), Server URL, Gateway Token. The token write-only — never read back from the API.

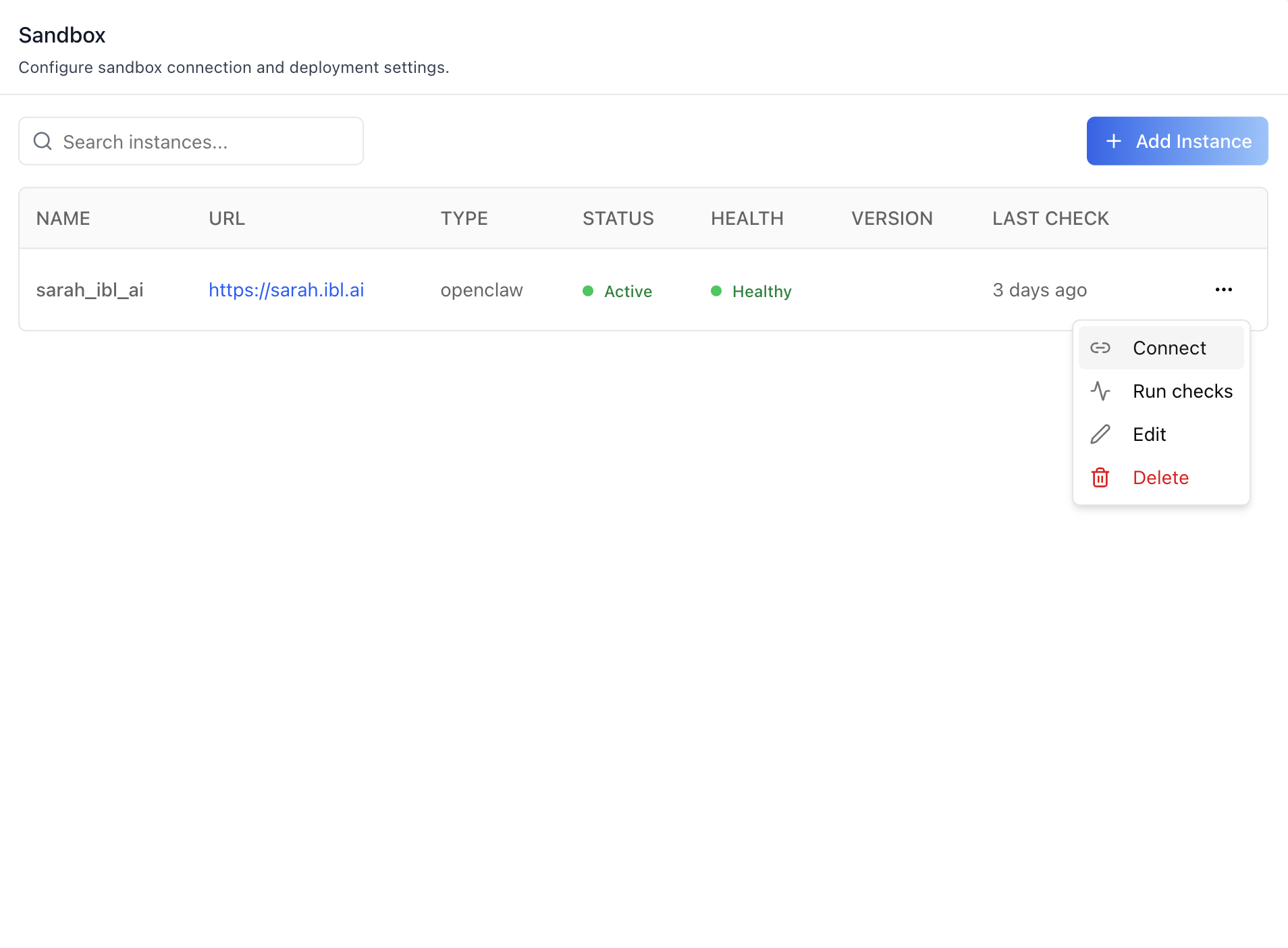

• Per-row actions (kebab menu): Connect (binds this instance to the current agent), Run checks (health + connectivity ping), Edit (gateway token re-prompt; leave blank to keep existing), Delete.

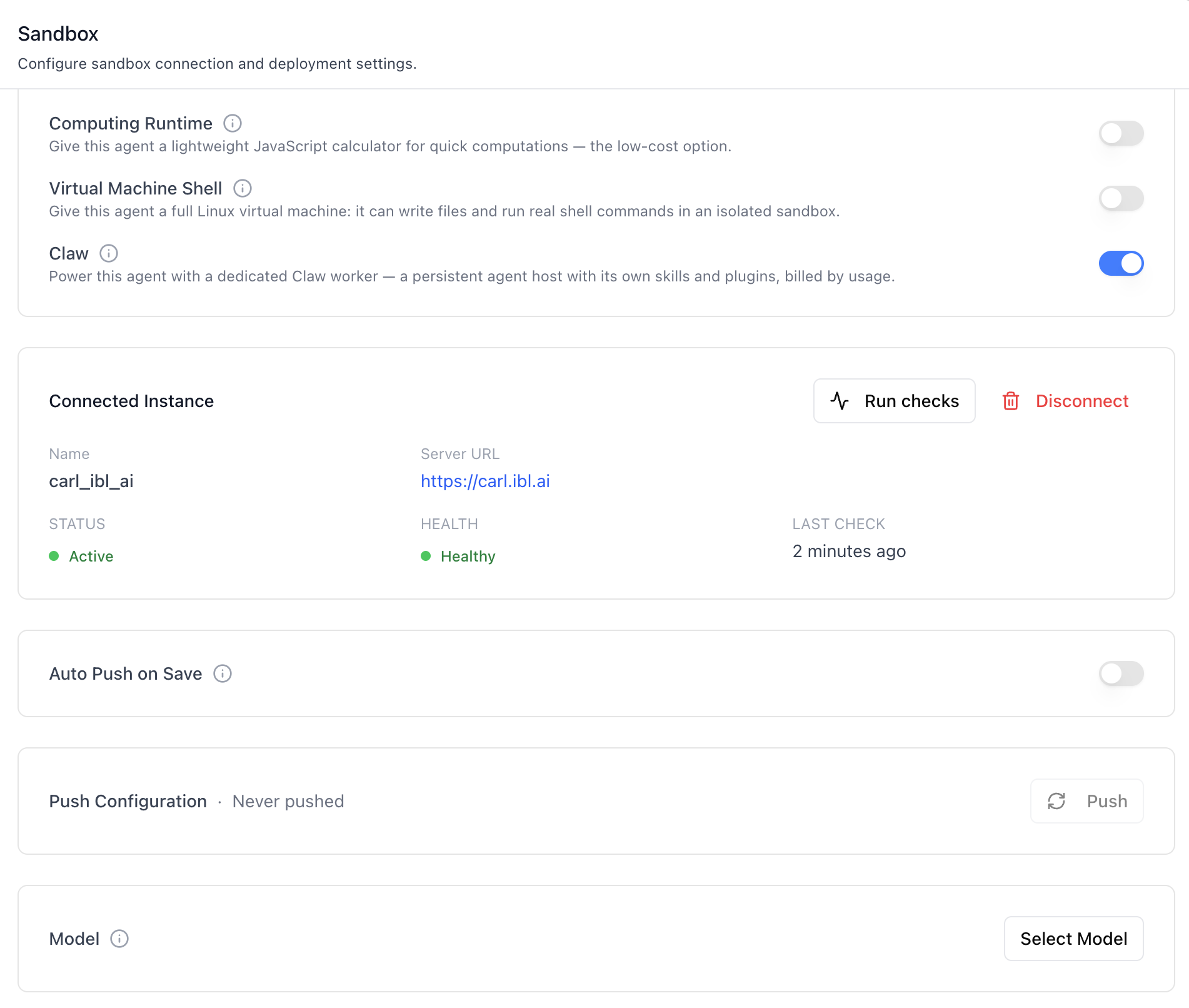

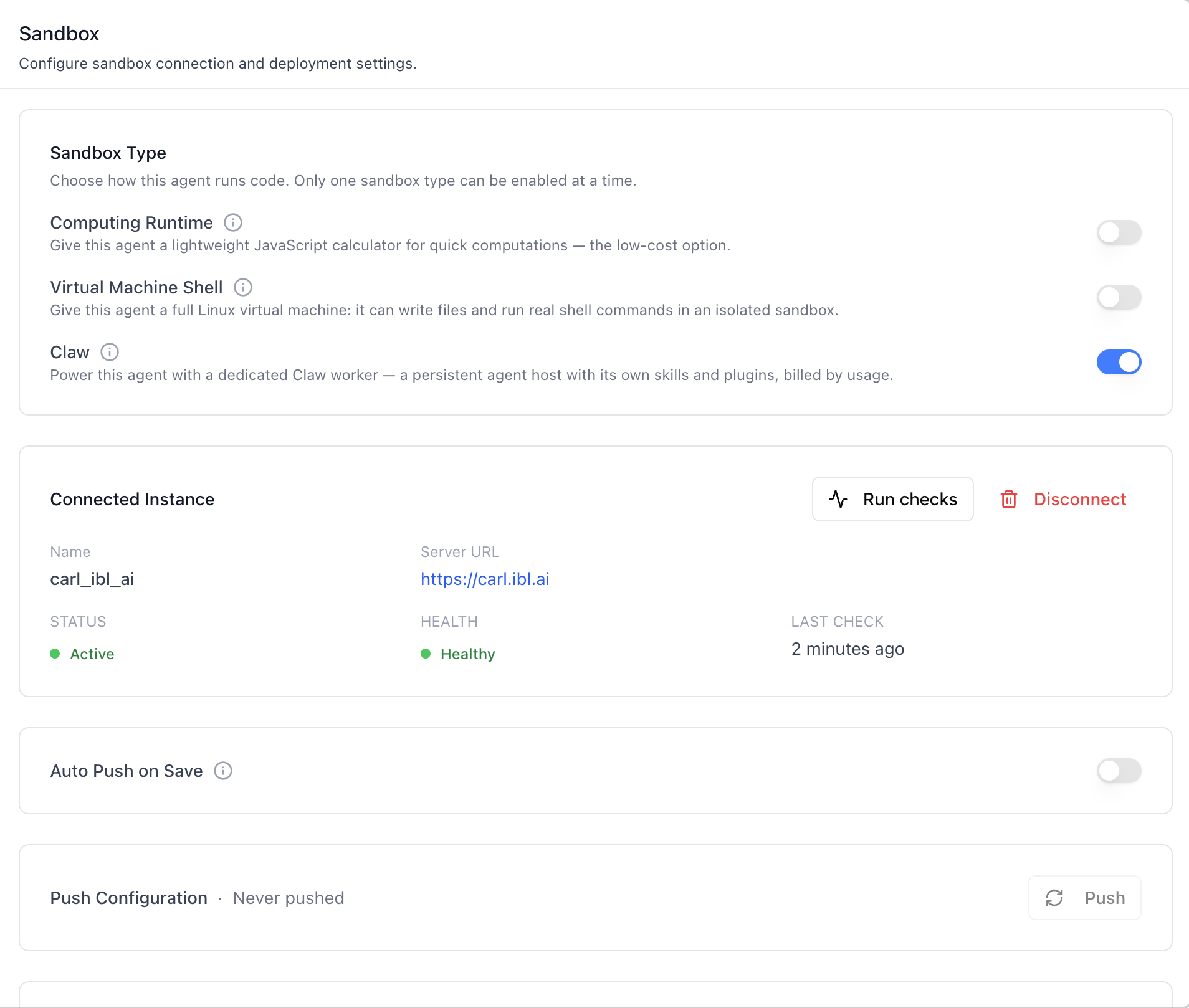

• Connected Instance card — once an agent is bound, the table collapses into a card showing Name, URL, Status, Health, Last Check, with Run checks and Disconnect actions.
• Auto Push on Save — when on, every prompt edit pushes to the sandbox. When off, the user pushes manually.
• Push Configuration — manual Push button + "Last pushed" / "Never pushed" indicator. Disabled when the agent has no populated prompt fields (the API rejects empty pushes server-side and we mirror that locally).
• Model — opens the LLMProviderModal to pick a provider / model ({provider}/{name}). Writes to the agent config's model field.

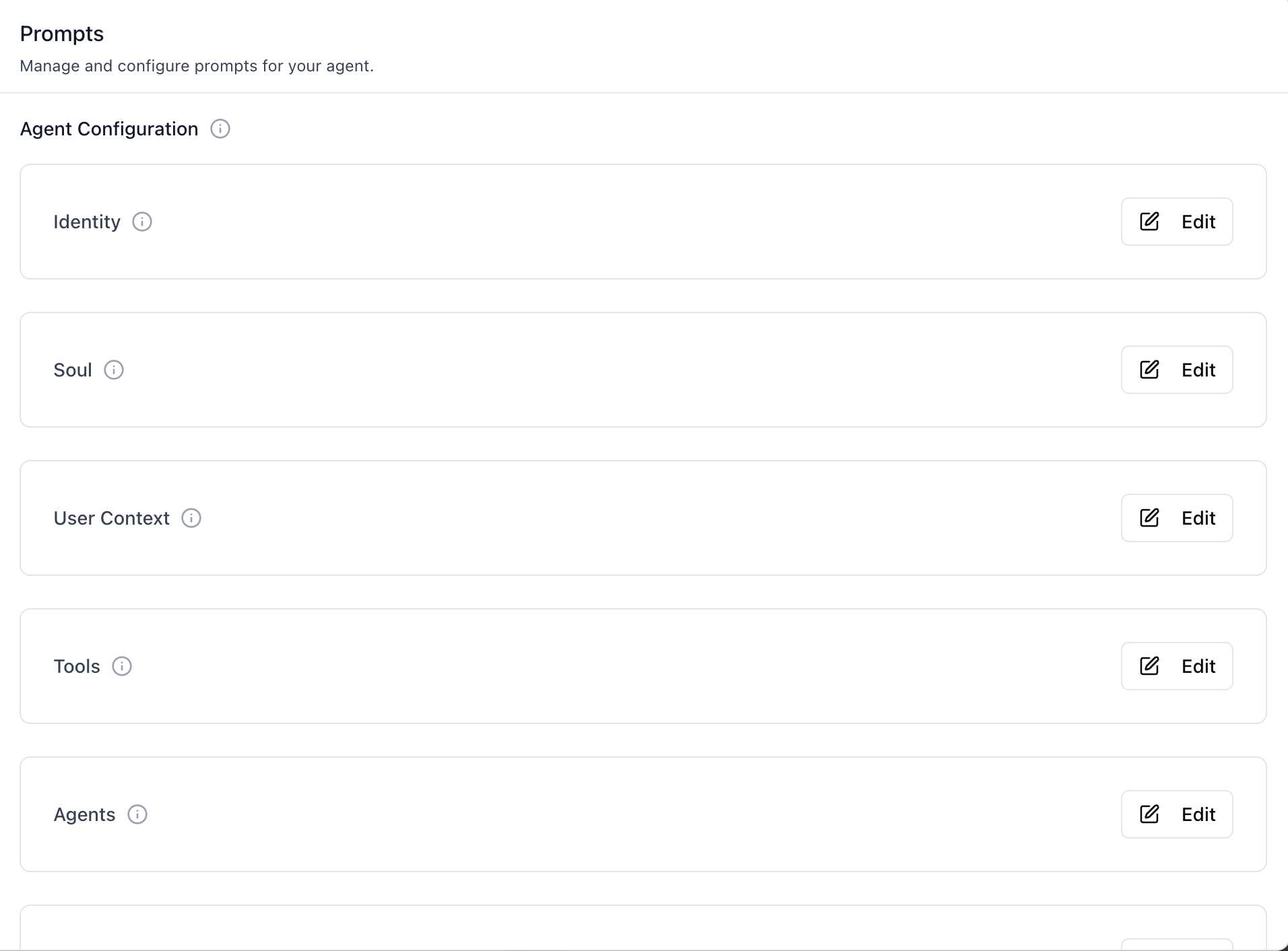

Prompts (agent workspace files)

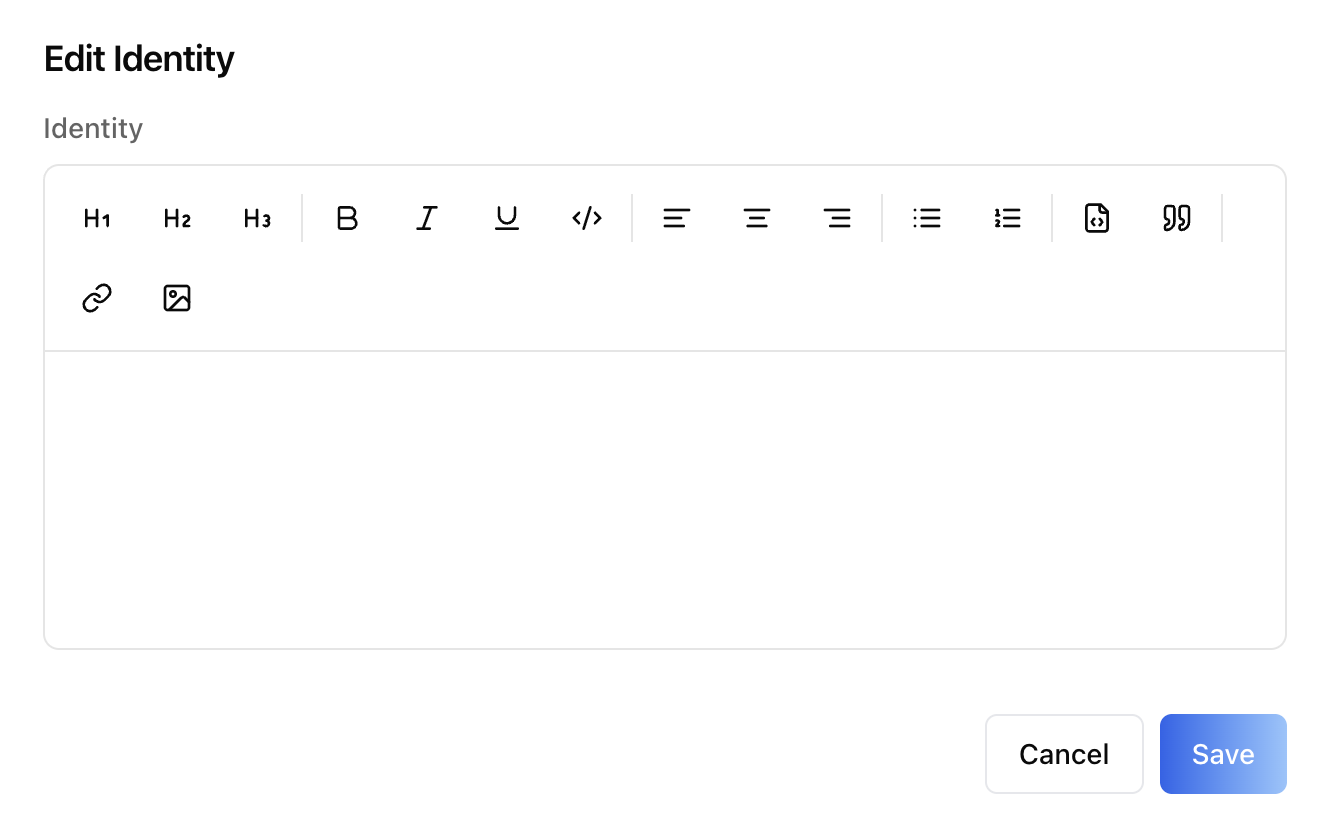

Eight rows, each with a (i) info tooltip and an Edit button that opens a RichTextEditor modal:

Updates are upserts — the first PATCH bootstraps the row.

Related Exports

From @iblai/iblai-js/web-containers:

• SandboxConfig, AgentConfigPrompts — the two section components.
• useLlmProviderCatalogue — resolves a provider key to its display name and logo, for custom UI that shows the chosen model (see /iblai-vibe-agent-llm).

From @iblai/iblai-js/web-containers/next:

• LLMProviderModal — provider/model picker used by the Model row. Mountable standalone (e.g. for an "override default model" flow outside the sandbox).
• LLMProvider, LLMProviderType — types for the picker (LLMProviderType is the { name, chat_models } provider row; LLMProvider the full row with display_name and logo).

From @iblai/data-layer:

• useGetClawMentorConfigQuery, useCreateClawMentorConfigMutation, useDeleteClawMentorConfigMutation, usePushClawConfigMutation — connect / disconnect / push.
• useGetClawInstancesQuery, useCreateClawInstanceMutation, useUpdateClawInstanceMutation, useDeleteClawInstanceMutation, useHealthCheckClawInstanceMutation, useTestConnectivityClawInstanceMutation — instance CRUD + checks.
• useGetAgentConfigQuery, useUpdateAgentConfigMutation — prompt fields + model.

Skills hooks and types (useGetAgentSkillsQuery, AgentSkill, …) are documented in /iblai-vibe-agent-skills.

Step 4: Verify

Run /iblai-vibe-ops-test before telling the user the work is ready:

1. pnpm build -- must pass with zero errors
2. pnpm test -- vitest must pass
3. Touch test /agents/<id>/sandbox in the browser as /iblai-vibe-ops-test says: open it, use every control this skill added, read the console, check the phone width.

Important Notes

• Redux store: Must include mentorReducer and mentorMiddleware
• initializeDataLayer(): 5 args (v1.2+)
• @reduxjs/toolkit: Deduplicated via webpack aliases in next.config.ts
• Peer deps: sonner and @iblai/iblai-web-mentor must be installed (pnpm add sonner @iblai/iblai-web-mentor)
• No AgentSettingsProvider: Both components take raw props. If your app already mounts AgentSettingsProvider for sibling tabs, read its values via useAgentSettings() in the page wrapper and forward them.
• mentorUniqueId vs mentorId: The sandbox endpoints key on the agent's UUID (called mentorUniqueId in the SDK), not the integer pk. Pass the same UUID you use everywhere else in the agent-* family.
• Gateway token write-only: The token is required to add an instance and required again when editing if you want to rotate it, but the API never returns it. Leaving the field blank on edit keeps the existing value.
• Push gating: usePushClawConfigMutation returns 400 No configuration to push when every agent-config field is empty. The component mirrors that gate locally — the manual Push button is disabled until the user has saved at least one prompt.
• 404 ≠ error: useGetClawMentorConfigQuery 404s when no agent has been bound to a sandbox — that's the "not connected" state, not a failure. The component treats isError as null here. Custom consumers should do the same.
• Sandbox kinds are mutually exclusive: SandboxConfig owns the three flags (enable_computational_runtime, enable_virtual_machine, enable_claw) and enforces the one-at-a-time rule in each PATCH (see Step 2.5) — host-side tab gating on enable_claw is no longer required. Custom UI writing the flags directly must clear the other two when enabling one. Existing Claw instances and configs are preserved across kind switches.
• Flag homes: enable_claw and enable_virtual_machine live on MentorSettings; enable_computational_runtime lives on Mentor — all three are readable from the settings response and writable through the same agent-settings update (useEditMentorMutation).
• Brand guidelines: BRAND.md

Sandbox REST API

For custom UI beyond these three components. All endpoints are prefixed with ${dmUrl}/api/ai-mentor/orgs/{org}/ where dmUrl is NEXT_PUBLIC_API_BASE_URL. Auth: Authorization: Token <token>.

Sandbox type flags (agent settings)

The kinds are mutually exclusive by convention, enforced client-side: when enabling one flag, send the other two as false in the same request. Only enable_claw unlocks the OpenClaw endpoints below.

Instances (organization-scoped)

Create / update body:

{
  "name": "sarah_ibl_ai",
  "server_url": "https://sarah.ibl.ai",
  "claw_type": "openclaw",
  "gateway_token": "ibl..."
}

gateway_token is write-only. Omit on update to keep the existing value.

Sandbox binding (binds an instance to an agent)

push returns 400 No configuration to push when every agent-config field is empty. Pre-flight by checking the agent config locally.

Agent configuration (prompts + model)

Body fields: identity, soul, user_context, tools, agents, bootstrap, heartbeat, memory (each is the markdown body of the corresponding *.md workspace file), plus model ("{provider}/{name}").

Agent Skills endpoints (catalog, resources, per-agent assignments) are documented in /iblai-vibe-agent-skills.

Virtual machine network policies & secrets

The Virtual Machine Shell kind runs each chat in an isolated Linux VM with no network by default. What it may reach is chosen per agent through three settings fields — virtual_machine_egress (none | registries | public | custom), virtual_machine_network_policy_id and virtual_machine_secret_ids — and the organization-wide network policies and VM secrets they point at live under /api/ai-account/orgs/{org}/.

That whole surface has its own skills:

• /iblai-vibe-agent-virtual-machine — the Sandbox tab's Network Access section: egress profile, policy picker, secrets multi-select, the rules the UI enforces before saving, and the agent settings fields.
• /iblai-vibe-virtual-machine — organization settings → Virtual Machine: the network policy and VM secret tables, their dialogs, validation limits, RBAC verbs and the REST endpoints.

Billing: VM lifetime is charged to the chatting user's credits at SANDBOX_COST_USD_PER_10_MINUTES (global configuration, default $1, overridable per organization), prorated per second and recorded on the sandbox_session observation in Langfuse.

Common errors

• 404 Not Found on claw-config/ — the agent isn't connected. Treat as the "not connected" state, not a failure.
• 400 No configuration to push — at least one prompt field must be populated before pushing.
• 400 Gateway token required — required on instance create; on edit only when rotating.
